3. Lesson 02a: o3.Irreps are the Type System of Equivariant Networks

What you will learn

• The o3.Irreps notation: what does the expression "16x0e + 8x1o" mean and what do multiplicity and parity entail for describing a feature tensor.

• How e3nn lays out features in memory.

• Features transformation, the usages of Irreps.D_from_matrix and our course-wide equivariance test harness course_utils.equivariance.assert_equivariant.

• Which simple operations are equivariant (per-irrep scaling) and which are not (elementwise nonlinearities on \(l>0\) components).

• Pseudo-scalars (0o) and pseudo-vectors (1e) with physical examples: chirality via the triple product, angular momentum via the cross product.

Prerequisites:

• Lesson 01b or

• familiarity with irreps of \(O(3)\) labeled by \((l, p)\), Wigner D-matrices, block-diagonal structure of reducible representations in the irreps basis.

import sys
sys.path.insert(0, "..")  # Make course_utils importable

import matplotlib.pyplot as plt
import numpy as np
import torch
from e3nn import o3

from course_utils.equivariance import assert_equivariant, equivariance_error

torch.set_default_dtype(torch.float64)  # Equivariance checks at ~1e-15, not 1e-6
torch.manual_seed(0)
np.random.seed(0)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"torch {torch.__version__} | device: {device}")

torch 2.7.1+cu126 | device: cuda

3.1. The notation: "16x0e + 8x1o"

Lesson 01b established that every finite-dimensional representation of \(O(3)\) is a direct sum of irreps \((l, p)\). e3nn turns this fact into a type annotation: every feature tensor in an equivariant network is declared as

(1)\[ \underbrace{16 \times (0, e)}_{16 \text{ scalars}} \;\oplus\; \underbrace{8 \times (1, o)}_{8 \text{ vectors}} \qquad\longleftrightarrow\qquad \texttt{"16x0e + 8x1o"} \]

Read MULxLP as: multiplicity MUL copies of the irrep with angular momentum degree L and parity P (e = even, o = odd). Each copy of irrep \((l,p)\) occupies \(2l+1\) consecutive numbers, so the total dimension here is \(16 \cdot 1 + 8 \cdot 3 = 40\).

The declaration tells e3nn exactly how the 40 numbers transform under any \(g \in O(3)\). This is what a neural network layer needs to know to stay equivariant. It is a type system in the programming-language sense: operations between features are legal only when their irrep types are compatible, or e3nn will raise error otherwise.

# Create an irreps object with multiplicities
irreps = o3.Irreps("16x0e + 8x1o")

# Print the properties of the irreps object
print(f"irreps      = {irreps}")
print(f"dim         = {irreps.dim}          (16*1 + 8*3)")
print(f"num_irreps  = {irreps.num_irreps}   (16 + 8 copies in total)")
print(f"lmax        = {irreps.lmax}")

# Iterate over (multiplicity, irrep) pairs
for mul_ir in irreps:
    mul, ir = mul_ir.mul, mul_ir.ir
    print(f"  {mul:>2} copies of {ir}:  l={ir.l}, parity p={ir.p:+d}, "
          f"irrep dim {ir.dim}, block dim {mul_ir.dim}")

irreps      = 16x0e+8x1o
dim         = 40          (16*1 + 8*3)
num_irreps  = 24   (16 + 8 copies in total)
lmax        = 1
  16 copies of 0e:  l=0, parity p=+1, irrep dim 1, block dim 16
   8 copies of 1o:  l=1, parity p=-1, irrep dim 3, block dim 24

3.2. Direct sums and algebra on Irreps

Irreps objects behave like the direct sums they denote: + concatenates, integer multiplication repeats, and .sort() / .simplify() bring an expression to a normal form (sorted by \(l\), equal irreps merged). These are bookkeeping operations on the types and no feature data is involved yet.

# Create two different irreps objects
a, b = o3.Irreps("0e + 1o"), o3.Irreps("2e")

# Print the results of operations on irreps objects
print(f"a + b          = {a + b}")
print(f"3 * a          = {3 * a}")
print(f"normal form    = {(3 * a).sort().irreps.simplify()}")
print(f"'1o' in a      : {o3.Irrep('1o') in a}")
print(f"all irreps with l <= 2: {[str(ir) for ir in o3.Irrep.iterator(2)]}")

a + b          = 1x0e+1x1o+1x2e
3 * a          = 1x0e+1x1o+1x0e+1x1o+1x0e+1x1o
normal form    = 3x0e+3x1o
'1o' in a      : True
all irreps with l <= 2: ['0e', '0o', '1o', '1e', '2e', '2o']

3.3. Memory layout and slicing

A tensor typed irreps has its last dimension of size irreps.dim, laid out in the order written: first all copies of the first entry, then the next, etc. Within a block of MULxLP, the MUL copies are contiguous. The resulting block reshapes to (..., MUL, 2l+1). irreps.slices() returns one slice per entry, and irreps.randn(*size) samples i.i.d. normal features (-1 marks the irreps axis).

# dim 2 + 6 + 5 = 13
feat_irreps = o3.Irreps("2x0e + 2x1o + 1x2e")

# a batch of 4 feature vectors
x = feat_irreps.randn(4, -1)
print(f"x.shape = {tuple(x.shape)}   (batch, irreps.dim = {feat_irreps.dim})")

# Loop over each irreducible representation in the irreps object and its
# corresponding slice in the tensor
for mul_ir, sl in zip(feat_irreps, feat_irreps.slices()):
    # Reshape each block to (batch, mul, 2l+1)
    block = x[:, sl].reshape(4, mul_ir.mul, mul_ir.ir.dim)

    # Print the shape of each block and how it corresponds to the original tensor
    print(f"  {str(mul_ir):>6}  <- x[:, {sl.start:>2}:{sl.stop:<2}]  "
          f"reshaped to (batch, mul, 2l+1) = {tuple(block.shape)}")

x.shape = (4, 13)   (batch, irreps.dim = 13)
    2x0e  <- x[:,  0:2 ]  reshaped to (batch, mul, 2l+1) = (4, 2, 1)
    2x1o  <- x[:,  2:8 ]  reshaped to (batch, mul, 2l+1) = (4, 2, 3)
    1x2e  <- x[:,  8:13]  reshaped to (batch, mul, 2l+1) = (4, 1, 5)

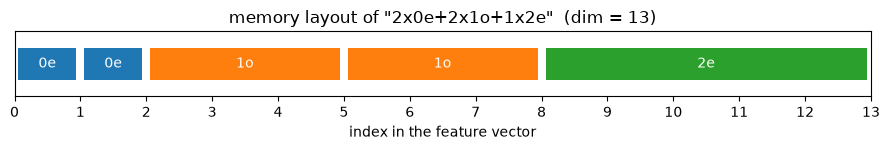

# The layout, drawn: one colored span per irrep copy, ticks at slice boundaries
fig, ax = plt.subplots(figsize=(9, 1.6))

# Color by l, fixed assignment
colors = {0: "C0", 1: "C1", 2: "C2"}

# Draw the layout of the feature vector
start = 0
for mul_ir in feat_irreps:
    # one span per copy
    for _ in range(mul_ir.mul):
        # Draw a horizontal bar for each copy of the irreducible representation
        ax.barh(0, mul_ir.ir.dim - 0.12, left=start + 0.06, height=0.6,
                color=colors[mul_ir.ir.l], edgecolor="none")

        # Add text label for the irreducible representation in the center of the bar
        ax.text(start + mul_ir.ir.dim / 2, 0, str(mul_ir.ir),
                ha="center", va="center", color="white", fontsize=10)

        # Increment the starting position for the next bar by the dimension of
        # the current irreducible representation
        start += mul_ir.ir.dim

# Set the x and y limits, ticks, labels, and title for the plot
ax.set_xlim(0, feat_irreps.dim)
ax.set_ylim(-0.6, 0.6)
ax.set_yticks([])
ax.set_xticks(range(feat_irreps.dim + 1))
ax.set_xlabel("index in the feature vector")
ax.set_title(f'memory layout of "{feat_irreps}"  (dim = {feat_irreps.dim})')
fig.tight_layout()

3.4. How typed features transform and how to test their equivariance

Having presented the irreps types, we can now demonstrate that for an element of the group, \(g \in O(3)\), (represented by a \(3\times 3\) orthogonal matrix), the feature vector transforms with the block-diagonal matrix

(2)\[\begin{split} x \;\longmapsto\; D(g)\,x, \\[5pt] D(g) = \bigoplus_{\text{copies } (l,p)} D^{(l,p)}(g), \end{split}\]

which can be created by irreps.D_from_matrix(g) (Lesson 01b). From now on, every operation we build gets an immediate numerical test against the definition of equivariance \(f(D_{\text{in}}(g)\,x) = D_{\text{out}}(g)\,f(x)\) for which we will adopt course_utils.equivariance.assert_equivariant. This function draws random symmetry operations from \(g \in O(3)\) (rotations, half of them composed with the inversion) and reports the worst deviation. Another sanity check we can use is the identity map because it is equivariant (with equal input/output types).

# Create the transformation matrix for a random rotation
D = feat_irreps.D_from_matrix(o3.rand_matrix())

# Print the shape of the transformation matrix
print(f"D(g): {tuple(D.shape)} block-diagonal matrix\n")

# The identity map, typed "13 numbers of 2x0e+2x1o+1x2e in, same out"
assert_equivariant(lambda x: x, irreps_in=feat_irreps, irreps_out=feat_irreps)

D(g): (13, 13) block-diagonal matrix

equivariant!  (max error 0.000e+00 over random O(3) elements)

0.0

An important question is: Which mappings remain equivariant under transformation?

By Schur’s lemma (Lesson 01b: irreps never mix), a linear map is equivariant iff it only mixes multiplicity channels of the same irrep, acting identically on the \(2l+1\) components of each copy. Scaling every irrep element by its own value is the simplest example. In contrast, any elementwise nonlinear mapping, acting on \(l>0\) components, breaks the equivariance. Such a nonlinear operation, for example, treats the components of a vector as three independent scalars, which they are not.

# One number per copy (2+2+1 copies)
weights = torch.tensor([2.0, -1.0, 0.5, 3.0, 1.5])

def scale_per_irrep(x):
    '''Multiply each irrep copy by a fixed scalar -- an equivariant linear map.'''

    # Set up an empty list to store the output and an index counter
    out, i = [], 0

    # Loop over each irreducible representation in the irreps object and its
    # corresponding slice in the tensor
    for mul_ir, sl in zip(feat_irreps, feat_irreps.slices()):

        # (batch, mul, 2l+1)
        block = x[:, sl].reshape(-1, mul_ir.mul, mul_ir.ir.dim)

        # Extract the weights for this irreducible representation
        w = weights[i : i + mul_ir.mul]

        # Increment the index counter by the multiplicity of the current
        # irreducible representation
        i += mul_ir.mul

        # Same scalar on all 2l+1
        out.append((w[:, None] * block).flatten(1))

    # Concatenate the scaled blocks along the last dimension and return the
    # result
    return torch.cat(out, dim=-1)

# Check that the scale_per_irrep function is equivariant with respect to the
# feature irreps
assert_equivariant(scale_per_irrep, feat_irreps, feat_irreps)

# Check the equivariance error of the elementwise ReLU function with respect to
# the feature irreps
err = equivariance_error(torch.relu, feat_irreps, feat_irreps)
print(f"elementwise ReLU:  max equivariance error = {err:.3f}  -> NOT equivariant")

equivariant!  (max error 1.776e-15 over random O(3) elements)
elementwise ReLU:  max equivariance error = 2.394  -> NOT equivariant

ReLU fails the equivariance test by a large margin. This is the central tension of equivariant network design as nonlinearities are what make neural networks expressive, but can destroy equivariance. In, Lesson 04 we resolves this issue.

3.5. Pseudo-scalars and pseudo-vectors: 0o and 1e

Parity gives four “flavors” to the low-\(l\) types. Among these four types, two (pseudo-scalar and pseudo-vector) may be less familiar to most people but they are physically essential:

type	name	transforms under \(R\)	under inversion \(P\)	physical examples
0e	scalar	unchanged	\(+\)	energy, mass, \(\lVert\vec r\rVert\)
0o	pseudo-scalar	unchanged	\(-\)	chirality measures, magnetic charge
1o	vector	\(R\vec v\)	\(-\)	position, velocity, force, dipole
1e	pseudo-vector	\(R\vec v\)	\(+\)	angular momentum \(\vec r \times \vec p\), magnetic field, torque

Both pseudo-scalars and pseudo-vectors arise from products of ordinary vectors:

• cross product: \(\vec a \times \vec b\) with \(\vec a, \vec b\) of type 1o rotates like a vector but is unchanged under inversion (\((-\vec a) \times (-\vec b) = \vec a \times \vec b\)) \(\rightarrow\) type 1e;

• triple product: \(\vec a \cdot (\vec b \times \vec c) = \det[\vec a, \vec b, \vec c]\) is rotation-invariant but flips sign under inversion \(\rightarrow\) type 0o. A nonzero triple product can distinguish a structure from its mirror image. As such, it is a chirality detector, which no 0e-only network can express (Lesson 06b makes this concrete on the Tetris dataset);

We verify both claims with our test harness which also includes improper elements!

# cross product: (1o, 1o) -> 1e;
# Input typed "2x1o" = two stacked vectors
def cross(x):
    # x: (batch, 6) = [a | b]
    return torch.cross(x[:, :3], x[:, 3:], dim=-1)

def triple(x):
    # x: (batch, 9) = [a | b | c]
    a, b, c = x[:, :3], x[:, 3:6], x[:, 6:]
    return (a * torch.cross(b, c, dim=-1)).sum(-1, keepdim=True)

# Check that the cross product function is equivariant with respect to the
# feature irreps
print("a x b     as 1e:", end="  ")
assert_equivariant(cross,  "2x1o", "1e")

# Check that the triple product function is equivariant with respect to the
# feature irreps
print("a.(b x c) as 0o:", end="  ")
assert_equivariant(triple, "3x1o", "0o")

a x b     as 1e:  equivariant!  (max error 2.487e-14 over random O(3) elements)
a.(b x c) as 0o:  equivariant!  (max error 1.421e-14 over random O(3) elements)

1.4210854715202004e-14

# Declaring the WRONG parity is caught immediately by the same test

# Pseudo-vector mislabeled as vector (1o instead of 1e)
err_cross  = equivariance_error(cross,  "2x1o", "1o")

# Pseudo-scalar mislabeled as scalar (0e instead of 0o)
err_triple = equivariance_error(triple, "3x1o", "0e")

# (errors are O(1): the two sides differ by a sign whenever g includes the inversion)
print(f"a x b     declared '1o':  error {err_cross:.3f}  -> wrong type rejected")
print(f"a.(b x c) declared '0e':  error {err_triple:.3f}  -> wrong type rejected")

a x b     declared '1o':  error 14.781  -> wrong type rejected
a.(b x c) declared '0e':  error 44.149  -> wrong type rejected

The harness catches parity mistakes only because it samples improper group elements: had we tested with pure rotations (\(SO(3)\) only), both wrong declarations would have passed our equivariant test silently. This is why e3nn carries parity labels everywhere, and why this course tests against \(O(3)\) by default.

3.6. Summary

• o3.Irreps("16x0e + 8x1o") declares a feature type: multiplicities × irreps \((l,p)\), total dimension \(\sum \text{mul} \cdot (2l+1)\), laid out block-by-block in the order written (.slices(), reshape to (mul, 2l+1)).

• Irreps support direct-sum algebra: +, integer multiplication *, .sort(), and .simplify().

• Features transform via the block-diagonal irreps.D_from_matrix(g). We adopt the assert_equivariant to test the \(f(D_{\text{in}}(g)x) = D_{\text{out}}(g)f(x)\) against random \(O(3)\) elements.

• Per-irrep scaling is equivariant but the elementwise ReLU on \(l>0\) components is not.

• 0o (pseudo-scalar) and 1e (pseudo-vector) are physical: triple products/chirality and cross products/angular momentum. Wrong parity declarations are caught in the equivariance test harness only when the test includes improper elements.

Next: Lesson 02b: Spherical Harmonics: the equivariant way to turn a direction, \(\hat r\), into features for every \(l\). This is the workhorse embedding in all the networks in Parts II–IV.

3.7. Exercises

1. Type arithmetic (Difficulty: 🌶️): What is the dimension of "32x0e + 16x1o + 8x2e", and which slice of the feature vector holds the 2e block? Verify with .dim and .slices().

Solution

\(32\cdot 1 + 16 \cdot 3 + 8 \cdot 5 = 32 + 48 + 40 = 120\); the 2e block occupies the last 40 entries, slice(80, 120).

# Create an Irreps object with the specified irreps
ir = o3.Irreps("32x0e + 16x1o + 8x2e")

# Print the dimension and slices of the Irreps object
print(ir.dim, ir.slices())

2. Per-copy norms are invariant (Difficulty: 🌶️🌶️): For x = feat_irreps.randn(4, -1) and a random \(g\), show numerically that the Euclidean norm of each irrep copy (each (2l+1)-block) is unchanged by D_from_matrix(g), even for improper \(g\). Why does this follow from the orthogonality of Wigner matrices (Lesson 01b)?

Solution

# Improper on purpose
g = -o3.rand_matrix()

# Rotate the x
xD = x @ feat_irreps.D_from_matrix(g).T

# Loop over each irreducible representation and its corresponding slice in the tensor
for mul_ir, sl in zip(feat_irreps, feat_irreps.slices()):

    # Compute the norm of each copy of the irrep before the transformation
    n0 = x[:, sl].reshape(4, mul_ir.mul, -1).norm(dim=-1)

    # Compute the norm of each copy of the irrep after the transformation
    n1 = xD[:, sl].reshape(4, mul_ir.mul, -1).norm(dim=-1)

    # Print the maximum absolute difference in norms for this irrep
    print(mul_ir, (n0 - n1).abs().max().item())

Each copy transforms as \(x \mapsto p\, D^{(l)}(R)\, x\) with \(D^{(l)}\) is orthogonal and \(p = \pm 1\). Since orthogonal matrices (and sign flips) preserve the norms, we get \(\lVert p\,D x\rVert = \lVert x \rVert\). These invariant norms are exactly what Lesson 04’s gate nonlinearities will act on.

3. Build a chirality feature (Difficulty: 🌶️🌶️🌶️): The Tetris dataset (course_utils.data.tetris) contains a mirror pair (shapes 0 and 1). Using only sums of triple products \(\sum_{j,k,l} (\vec x_j - \bar x) \cdot \big((\vec x_k - \bar x) \times (\vec x_l - \bar x)\big)\) over the 4 points of each shape (with \(\bar x\) the centroid), compute one number per shape. Sum over \(j<k<l\). What do you get for the mirror pair vs. the achiral shapes, and why is this a 0o quantity?

Solution

from itertools import combinations
from course_utils.data import tetris

# Tetris dataset
pos, labels = tetris()

# Compute the chirality feature
for i, x in enumerate(pos):

    # Center the points by subtracting the mean
    x = x - x.mean(0)

    # Compute the sum of triple products over all combinations of 3 points from the 4 points
    chi = sum(torch.det(torch.stack([x[j], x[k], x[l]]))
              for j, k, l in combinations(range(4), 3))
    print(i, f"{chi:+.3f}")

Each determinant is a triple product of 1o vectors, hence a 0o pseudo-scalar. On the other hand, sums of pseudo-scalars stay pseudo-scalars. Since under a mirror operation (\(P\) composed with a rotation), the feature flips its sign, one can distinguish the two chiral shapes, which no invariant (0e) function of distances alone can.
