Training SchNet on rMD17 (ethanol)#
This trains the xnn SchNet (Schütt et al., NIPS 2017) from scratch on
the paper’s own benchmark task: energies and forces of a molecular-dynamics
trajectory of a small organic molecule (the paper’s MD17, Table 2 — here the
noise-free revision rMD17,
downloaded in seconds through the xnn hub), and reproduces the paper’s
headline demonstrations at small scale:
joint energy + force training with the paper’s loss weighting (eq. 5, \(\rho = 0.01\)) — forces come for free via autograd through the
ForceStressOutputwrapper theTraineradds (the model is energy-conserving by construction, eq. 4);an energy/force parity plot vs DFT on held-out conformations;
a smooth 1-D potential-energy scan, the property that continuous filters + shifted softplus buy over discretized approaches (paper Fig. 1).
The model is the paper architecture (\(F = 64\), \(T = 3\), Gaussian RBFs every
0.1 Å with \(\gamma = 10\) Å\(^{-2}\)); the implementation is verified against
the manuscripts’ equations block by block in
examples/fidelity_checks/schnet_verification.ipynb.
Run with the xnn kernel (uses the GPU when available).
0. Setup and data#
import time, warnings
warnings.filterwarnings("ignore")
import numpy as np
import torch
import matplotlib.pyplot as plt
torch.set_default_dtype(torch.float64)
torch.manual_seed(0)
from xnn.common.data import load_dataset
# The paper trains without a distance cutoff -- its RBF grid just ends beyond
# every pair distance. Ethanol spans < 5 A, so a 10 A radius reproduces that
# no-cutoff setting (complete graph) with a matching 0.1 A RBF grid; the DTNN
# paper likewise picks the grid end "depending on the range of distances in
# the data".
CUTOFF, N_RBF = 10.0, 101
splits = load_dataset("rmd17", molecule="ethanol",
n_train=1000, n_test=500, quiet=True)
train_structs, test_structs = splits["train"], splits["test"]
N_ATOMS = len(train_structs[0]["atomic_numbers"])
print(f"train {len(train_structs)} test {len(test_structs)} "
f"atoms/molecule {N_ATOMS}")
train 1000 test 500 atoms/molecule 9
1. Per-atom energy standardization (DTNN Methods, step 4)#
SchNet inherits the DTNN output convention: the network predicts a standardized per-atom energy \(\hat E_i\), and the final contribution is \(E_i = E_\sigma \hat E_i + E_\mu\) with \(E_\mu\)/\(E_\sigma\) the mean and standard deviation of the energy per atom over the training set. With the zero-initialized output head, the model’s first prediction is exactly the training-set mean — “a good starting point for the training”.
E_train = np.array([s["energy"] for s in train_structs])
E_SHIFT = float(E_train.mean() / N_ATOMS) # E_mu (eV / atom)
E_SCALE = float(E_train.std() / N_ATOMS) # E_sigma (eV / atom)
print(f"E_mu = {E_SHIFT:.4f} eV/atom E_sigma = {E_SCALE:.5f} eV/atom")
print(f"(total-energy spread of the trajectory: {E_train.std():.3f} eV)")
E_mu = -467.7363 eV/atom E_sigma = 0.01981 eV/atom
(total-energy spread of the trajectory: 0.178 eV)
2. Build the paper’s SchNet and train on energies + forces#
The paper’s combined loss (eq. 5) is
\(\ell = \rho\,\|E - \hat E\|^2 + \frac{1}{n}\sum_i \|F_i + \partial\hat
E/\partial R_i\|^2\) with \(\rho = 0.01\). The xnn trainer normalizes the
energy term per atom (energy_weight * ((E - Ê)/n)²), so energy_weight=1, force_weight=1 gives an effective energy:force ratio of \(1/n^2 = 1/81
\approx 0.012\) — the paper’s \(\rho\).
from torch.utils.data import Subset
from xnn.common.data import AtomicDataset
from xnn.common.config import Config, ModelConfig, DataConfig, OptimConfig
from xnn.common.train import Trainer
EPOCHS, BS, LR = 300, 32, 1e-3
train_ds = AtomicDataset(train_structs, CUTOFF)
test_ds = AtomicDataset(test_structs, CUTOFF)
n_val = 100
val_idx = list(range(n_val))
tr_idx = list(range(n_val, len(train_ds)))
cfg = Config(
model=ModelConfig(name="schnet", cutoff=CUTOFF, n_features=64,
n_interactions=3, n_rbf=N_RBF,
extra={"gamma": 10.0,
"energy_shift": E_SHIFT,
"energy_scale": E_SCALE}),
data=DataConfig(cutoff=CUTOFF, batch_size=BS),
optim=OptimConfig(lr=LR, epochs=EPOCHS, energy_weight=1.0,
force_weight=1.0, scheduler="plateau"),
output_dir="runs/schnet_rmd17",
)
trainer = Trainer(cfg, Subset(train_ds, tr_idx), Subset(train_ds, val_idx),
test_ds)
n_params = sum(p.numel() for p in trainer.module.parameters())
print(f"SchNet parameters: {n_params:,} | device: {trainer.device}")
hist = {"train": [], "val": []}
trainer._log = lambda ep, tr, va: (hist["train"].append(tr.get("loss")),
hist["val"].append(va.get("loss")))
t0 = time.time()
metrics = trainer.fit()
print(f"trained {EPOCHS} epochs in {time.time()-t0:.0f}s | "
f"test loss {metrics['test']['loss']:.4e}")
SchNet parameters: 78,117 | device: cuda
test loss 7.6798e-03
trained 300 epochs in 231s | test loss 7.6798e-03

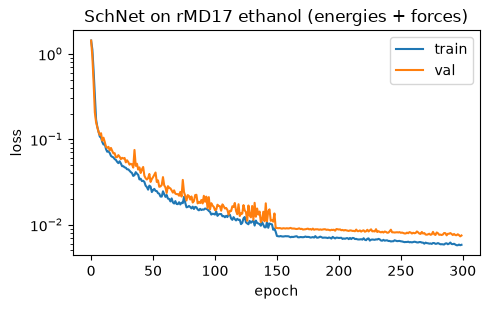

3. Learning curves#
fig, ax = plt.subplots(figsize=(5, 3.2))
ax.plot(hist["train"], label="train")
ax.plot(hist["val"], label="val")
ax.set_yscale("log"); ax.set_xlabel("epoch"); ax.set_ylabel("loss")
ax.set_title("SchNet on rMD17 ethanol (energies + forces)")
ax.legend(); fig.tight_layout()
fig.savefig("schnet_loss_curves.png", dpi=110); plt.show()

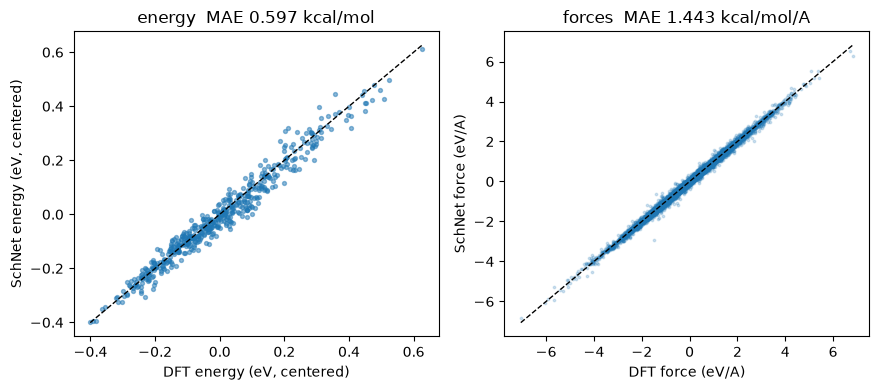

4. Energy & force parity vs DFT (the paper’s Table 2 task)#
Predict on the 500 held-out conformations and compare to the reference DFT. We report MAEs in kcal/mol — the paper’s unit. For scale: SchNet trained on \(N = 1000\) MD17 ethanol conformations reaches 0.08 kcal/mol (energy) and 0.39 kcal/mol/Å (forces) in Table 2, with ~10x longer training and learning- rate decay; this 300-epoch run lands within a few times those numbers (sub-kcal/mol energies).
from torch.utils.data import DataLoader
from xnn.common.data import collate
model = trainer.model.eval()
device = trainer.device
EV2KCAL = 23.060541945329334
E_pred, E_ref, F_pred, F_ref = [], [], [], []
for batch in DataLoader(test_ds, batch_size=50, collate_fn=collate):
batch = batch.to(device)
out = model(batch)
E_pred.append(out["energy"].detach().cpu().numpy())
E_ref.append(batch.energy.detach().cpu().numpy())
F_pred.append(out["forces"].detach().cpu().numpy())
F_ref.append(batch.forces.detach().cpu().numpy())
E_pred, E_ref = np.concatenate(E_pred), np.concatenate(E_ref)
F_pred, F_ref = np.concatenate(F_pred), np.concatenate(F_ref)
e_mae = np.abs(E_pred - E_ref).mean()
f_mae = np.abs(F_pred - F_ref).mean()
e_rmse = np.sqrt(np.mean((E_pred - E_ref) ** 2))
f_rmse = np.sqrt(np.mean((F_pred - F_ref) ** 2))
print(f"energy MAE : {e_mae*1e3:6.2f} meV ({e_mae*EV2KCAL:.3f} kcal/mol)")
print(f"force MAE : {f_mae*1e3:6.2f} meV/A ({f_mae*EV2KCAL:.3f} kcal/mol/A)")
print(f"energy RMSE: {e_rmse*1e3:6.2f} meV ({e_rmse*EV2KCAL:.3f} kcal/mol)")
print(f"force RMSE: {f_rmse*1e3:6.2f} meV/A ({f_rmse*EV2KCAL:.3f} kcal/mol/A)")
fig, (a1, a2) = plt.subplots(1, 2, figsize=(9, 4))
a1.scatter(E_ref - E_ref.mean(), E_pred - E_ref.mean(), s=8, alpha=0.5)
lim = np.array([(E_ref - E_ref.mean()).min(), (E_ref - E_ref.mean()).max()])
a1.plot(lim, lim, "k--", lw=1)
a1.set_xlabel("DFT energy (eV, centered)")
a1.set_ylabel("SchNet energy (eV, centered)")
a1.set_title(f"energy MAE {e_mae*EV2KCAL:.3f} kcal/mol")
a2.scatter(F_ref.ravel(), F_pred.ravel(), s=3, alpha=0.2)
lim = np.array([F_ref.min(), F_ref.max()])
a2.plot(lim, lim, "k--", lw=1)
a2.set_xlabel("DFT force (eV/A)"); a2.set_ylabel("SchNet force (eV/A)")
a2.set_title(f"forces MAE {f_mae*EV2KCAL:.3f} kcal/mol/A")
fig.tight_layout()
fig.savefig("schnet_parity.png", dpi=110); plt.show()
energy MAE : 25.87 meV (0.597 kcal/mol)
force MAE : 62.58 meV/A (1.443 kcal/mol/A)
energy RMSE: 33.49 meV (0.772 kcal/mol)
force RMSE: 87.76 meV/A (2.024 kcal/mol/A)

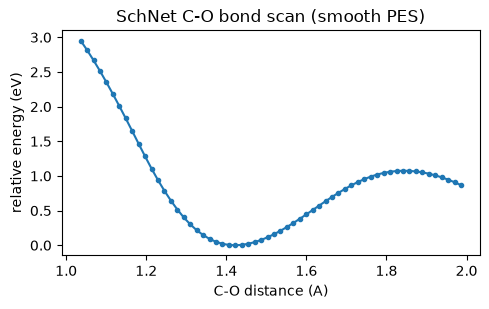

5. A smooth 1-D potential-energy scan (paper Fig. 1)#
The point of continuous filters is a smooth, differentiable PES (the paper’s Fig. 1 contrasts this with the jagged surface a discretized filter produces). We stretch the C–O bond of a test geometry and evaluate the trained SchNet along the scan: a smooth single-well curve is what enables stable geometry optimization and MD.
from xnn.common.data.neighborlist import build_neighbor_list
from xnn.common.data import AtomicGraph
s = test_structs[0]
Z = torch.tensor(np.asarray(s["atomic_numbers"]), dtype=torch.long)
pos0 = torch.tensor(s["pos"], dtype=torch.float64)
# ethanol: stretch the C-O bond (C index nearest the O)
O = int((Z == 8).nonzero()[0])
Cs = (Z == 6).nonzero().flatten()
d = torch.linalg.norm(pos0[Cs] - pos0[O], dim=1)
C = int(Cs[d.argmin()])
axis = pos0[O] - pos0[C]; axis = axis / axis.norm()
r0 = float(torch.linalg.norm(pos0[O] - pos0[C]))
scan = np.linspace(-0.35, 0.6, 60)
energies = []
for dr in scan:
pos = pos0.clone(); pos[O] = pos0[O] + dr * axis
ei, cs = build_neighbor_list(pos, CUTOFF)
g = AtomicGraph(pos=pos.to(device), atomic_numbers=Z.to(device),
edge_index=ei.to(device), cell_shifts=cs.to(device),
batch=torch.zeros(len(Z), dtype=torch.long, device=device),
n_atoms=torch.tensor([len(Z)], device=device))
with torch.no_grad():
energies.append(float(trainer.module.model(g)["energy"]))
energies = np.array(energies) - min(energies)
fig, ax = plt.subplots(figsize=(5, 3.2))
ax.plot(r0 + scan, energies, "o-", ms=3)
ax.set_xlabel("C-O distance (A)"); ax.set_ylabel("relative energy (eV)")
ax.set_title("SchNet C-O bond scan (smooth PES)")
fig.tight_layout()
fig.savefig("schnet_bond_scan.png", dpi=110); plt.show()
Summary#
From scratch on 900 ethanol conformations, the paper-architecture xnn
SchNet trained jointly on energies and forces reaches kcal/mol-scale accuracy
on held-out DFT data and yields a smooth potential-energy surface — the two
properties the NIPS paper demonstrates on MD17. The trained checkpoint is
saved under runs/schnet_rmd17/; schnet_ethanol_md.ipynb picks it up to
run NVE molecular dynamics and verify that the autograd forces conserve the
total energy (the paper’s energy-conservation-by-construction claim, eq. 4).
The implementation itself is verified against the manuscripts’ equations in
examples/fidelity_checks/schnet_verification.ipynb.
