DFT-D3 in xnn vs the reference simple-dftd3: accuracy, speed, and deployment with an MLIP#
A benchmark of xnn’s D3Dispersion (Grimme et al., JCP 132, 154104, 2010; BJ damping
Grimme, Ehrlich & Goerigk, JCC 32, 1456, 2011) against the reference Fortran
implementation simple-dftd3 1.6.0 (used
through its Python package dftd3 purely as an external reference). PBE0-D3(BJ)-ATM
parameters throughout (s8 = 1.2177, a1 = 0.4145, a2 = 4.8593, s9 = 1):
accuracy on the S22 complexes and on molecular crystals – dispersion energies, interaction-energy contributions, gradients and virials;
speed vs system size on CPU and GPU, with the upstream real-space cutoffs (60 / 40 / 40 bohr) and with the shorter cutoffs an MLIP would use in MD – the three-body term is the part to watch: it is enumerated from the neighbor list within
cutoff_triple, so its cost grows with \(N \cdot n_{\rm nb}^2\) rather than \(N^3\), but at 40 bohr \(n_{\rm nb}\) is in the thousands for a liquid;deployment of a D3-corrected MACE through every xnn channel (eager, ASE, TorchScript whole-system and pair-style ABIs), including forces and stress.
import numpy as np
from dftd3.interface import DispersionModel, RationalDampingParam
import logging, warnings, time
logging.disable(logging.WARNING)
warnings.filterwarnings("ignore")
import torch
import matplotlib.pyplot as plt
from ase import Atoms
from ase.build import molecule
from ase.data.s22 import create_s22_system, get_number_of_dimer_atoms, get_interaction_energy_cc, s22
torch.set_default_dtype(torch.float64)
import xnn
from xnn.common.config import from_dict
from xnn.common.data import structure_to_graph, build_neighbor_list
from xnn.common.deploy import TorchScriptPotential, XNNCalculator
from xnn.common.models import D3Dispersion, ForceStressOutput, build_model
from xnn.common.models.dispersion import BOHR, HARTREE
PARAM = dict(s6=1.0, s8=1.2177, a1=0.4145, a2=4.8593, s9=1.0, alp=14.0) # PBE0-D3(BJ)-ATM
device = "cuda" if torch.cuda.is_available() else "cpu"
print("xnn", xnn.__version__, "| simple-dftd3 1.6.0 | torch", torch.__version__, "| device for the GPU timings:", device)
def reference(atoms, cutoffs=None, grad=True):
periodic = bool(atoms.pbc.any())
m = DispersionModel(atoms.numbers, atoms.positions / BOHR,
lattice=atoms.cell[:] / BOHR if periodic else None,
periodic=np.array(atoms.pbc) if periodic else None)
if cutoffs:
m.set_realspace_cutoff(**cutoffs)
return m.get_dispersion(RationalDampingParam(**PARAM), grad=grad)
def xnn_energy(atoms, model=None, device="cpu", stress=False, **options):
options.setdefault("s9", 1.0)
model = (model or D3Dispersion(**options)).to(device)
s = {"pos": atoms.positions, "atomic_numbers": atoms.numbers}
if atoms.pbc.any():
s["cell"], s["pbc"] = atoms.cell[:], atoms.pbc
graph = structure_to_graph(s, model.cutoff, device=device)
out = ForceStressOutput(model, compute_stress=stress)(graph)
return {k: v.detach().cpu() for k, v in out.items()}
xnn 0.2.1 | simple-dftd3 1.6.0 | torch 2.5.1+cu121 | device for the GPU timings: cuda
1. Accuracy: S22 dispersion energies and interaction contributions#
For each S22 complex the dispersion energy of the dimer and of both monomers is computed with both codes, along with the dispersion contribution to the interaction energy \(E_{\rm disp}(AB) - E_{\rm disp}(A) - E_{\rm disp}(B)\), which is the quantity that enters a DFT-D3 binding energy. Gradients are compared for the dimers.
rows = []
for name in s22:
dimer = create_s22_system(name); n_a, n_b = get_number_of_dimer_atoms(name)
parts = [dimer, dimer[:n_a], dimer[n_a:n_a + n_b]]
ref = [reference(a) for a in parts]
mine = [xnn_energy(a) for a in parts]
e_ref = [float(r["energy"]) for r in ref]; e_xnn = [float(m["energy"]) / HARTREE for m in mine]
grad_xnn = -mine[0]["forces"].numpy() / HARTREE * BOHR
rows.append({"name": name, "N": len(dimer), "E_disp(AB) [Eh]": e_ref[0],
"|dE| [Eh]": max(abs(a - b) for a, b in zip(e_ref, e_xnn)),
"|dgrad| [Eh/bohr]": np.abs(grad_xnn - ref[0]["gradient"]).max(),
"dE_int(s-dftd3) [kcal/mol]": (e_ref[0] - e_ref[1] - e_ref[2]) * 627.5095,
"dE_int(xnn) [kcal/mol]": (e_xnn[0] - e_xnn[1] - e_xnn[2]) * 627.5095,
"CCSD(T) [kcal/mol]": get_interaction_energy_cc(name) * 23.0605})
print(f"{'S22 complex':32s} {'N':>3s} {'E_disp(AB)':>12s} {'|dE|':>8s} {'|dgrad|':>8s} {'dEint d3':>9s} {'dEint xnn':>10s} {'CCSD(T)':>8s}")
for r in rows:
print(f"{r['name']:32s} {r['N']:3d} {r['E_disp(AB) [Eh]']:12.8f} {r['|dE| [Eh]']:8.1e} {r['|dgrad| [Eh/bohr]']:8.1e} "
f"{r['dE_int(s-dftd3) [kcal/mol]']:9.3f} {r['dE_int(xnn) [kcal/mol]']:10.3f} {r['CCSD(T) [kcal/mol]']:8.2f}")
print(f"\nmax |dE| = {max(r['|dE| [Eh]'] for r in rows):.1e} Eh, max |dgrad| = {max(r['|dgrad| [Eh/bohr]'] for r in rows):.1e} Eh/bohr, "
f"max |d dE_int| = {max(abs(r['dE_int(s-dftd3) [kcal/mol]'] - r['dE_int(xnn) [kcal/mol]']) for r in rows):.1e} kcal/mol")
S22 complex N E_disp(AB) |dE| |dgrad| dEint d3 dEint xnn CCSD(T)
Ammonia_dimer 8 -0.00200998 8.7e-19 6.1e-20 -0.523 -0.523 -3.17
Water_dimer 6 -0.00112367 1.1e-19 5.4e-20 -0.358 -0.358 -5.02
Formic_acid_dimer 10 -0.00514519 1.7e-18 1.1e-19 -1.379 -1.379 -18.80
Formamide_dimer 12 -0.00656213 4.3e-19 1.5e-19 -1.508 -1.508 -16.12
Uracil_dimer_h-bonded 24 -0.02310849 1.0e-17 8.7e-19 -2.188 -2.188 -20.69
2-pyridoxine_2-aminopyridine_complex 25 -0.02414502 3.5e-18 1.1e-18 -2.597 -2.597 -17.00
Adenine-thymine_Watson-Crick_complex 30 -0.03114211 3.5e-18 3.4e-18 -2.816 -2.816 -16.74
Methane_dimer 10 -0.00275785 4.3e-19 8.1e-20 -0.574 -0.574 -0.53
Ethene_dimer 12 -0.00577244 1.7e-18 2.4e-19 -1.236 -1.236 -1.50
Benzene-methane_complex 17 -0.01253285 1.7e-18 4.6e-19 -1.412 -1.412 -1.45
Benzene_dimer_parallel_displaced 24 -0.02564345 1.4e-17 2.7e-19 -4.343 -4.343 -2.62
Pyrazine_dimer 20 -0.02196277 1.7e-18 3.2e-18 -4.298 -4.298 -4.20
Uracil_dimer_stack 24 -0.02879565 3.5e-18 6.0e-19 -5.752 -5.752 -9.74
Indole-benzene_complex_stack 28 -0.03407941 6.9e-18 3.7e-18 -6.050 -6.050 -4.59
Adenine-thymine_complex_stack 30 -0.03943915 1.7e-18 5.4e-18 -8.014 -8.014 -11.66
Ethene-ethyne_complex 10 -0.00403760 1.7e-18 2.2e-19 -0.664 -0.664 -1.51
Benzene-water_complex 15 -0.01172569 3.5e-18 7.5e-19 -1.311 -1.311 -3.29
Benzene-ammonia_complex 16 -0.01218824 1.1e-19 8.1e-19 -1.405 -1.405 -2.32
Benzene-HCN_complex 15 -0.01277941 1.7e-18 6.0e-19 -1.716 -1.716 -4.55
Benzene_dimer_T-shaped 24 -0.02265958 1.4e-17 8.4e-19 -2.472 -2.472 -2.71
Indole-benzene_T-shape_complex 28 -0.02967281 3.5e-18 4.2e-18 -3.289 -3.289 -5.62
Phenol_dimer 26 -0.02506281 3.5e-18 8.7e-19 -2.625 -2.625 -7.09
max |dE| = 1.4e-17 Eh, max |dgrad| = 5.4e-18 Eh/bohr, max |d dE_int| = 1.1e-14 kcal/mol
Crystals: energies, gradients and virials#
Periodic systems exercise the lattice sums of the coordination numbers and of the two- and three-body terms. Rocksalt NaCl, diamond silicon, a sheared silicon cell, a graphite-like layered cell and a small periodic water box.
from ase.build import bulk
from ase.lattice.hexagonal import Graphite
rng = np.random.default_rng(0)
box = Atoms(cell=[7.0, 7.0, 7.0], pbc=True)
for _ in range(6):
w = molecule("H2O"); w.rotate(rng.uniform(0, 360), rng.normal(size=3)); w.translate(rng.uniform(0, 7.0, 3)); box += w
sheared = bulk("Si", "diamond", a=5.43); c = sheared.cell[:].copy(); c[1, 0] += 0.6; sheared.set_cell(c, scale_atoms=False)
crystals = {"NaCl rocksalt (conventional)": bulk("NaCl", "rocksalt", a=5.64, cubic=True),
"Si diamond (primitive)": bulk("Si", "diamond", a=5.43),
"Si sheared cell": sheared,
"graphite": Graphite("C", latticeconstant={"a": 2.46, "c": 6.70}),
"water box (18 atoms)": box}
print(f"{'crystal':30s} {'N':>3s} {'E_disp [Eh]':>14s} {'|dE|':>8s} {'|dgrad|':>8s} {'|dvirial|':>9s}")
for name, atoms in crystals.items():
ref = reference(atoms); mine = xnn_energy(atoms, stress=True)
vol = atoms.get_volume() / BOHR**3
virial = mine["stress"][0].numpy() / HARTREE * BOHR**3 * vol
print(f"{name:30s} {len(atoms):3d} {float(ref['energy']):14.10f} {abs(float(mine['energy']) / HARTREE - float(ref['energy'])):8.1e} "
f"{np.abs(-mine['forces'].numpy() / HARTREE * BOHR - ref['gradient']).max():8.1e} {np.abs(virial - ref['virial']).max():9.1e}")
crystal N E_disp [Eh] |dE| |dgrad| |dvirial|
NaCl rocksalt (conventional) 8 -0.0641137907 6.9e-16 1.7e-18 1.4e-14
Si diamond (primitive) 2 -0.0237065254 1.6e-16 1.9e-18 6.6e-16
Si sheared cell 2 -0.0237627852 2.8e-16 1.4e-16 6.9e-16
graphite 4 -0.0210407655 1.5e-16 2.1e-18 2.0e-15
water box (18 atoms) 18 -0.0105301904 1.7e-18 8.4e-19 1.2e-16
2. Speed vs system size#
Water clusters cut from a liquid-like configuration (1 g/cm³), from 30 to about 1500 atoms, evaluated with
s-dftd3(Fortran, OpenMP, energy + analytical gradient),xnn on the CPU and on the GPU (energy + autograd forces),
first with the upstream cutoffs (60 / 40 / 40 bohr, the exact-fidelity setting) and
then with MD-style cutoffs (cutoff_pair 12 Å, cutoff_triple 6 Å, cutoff_cn 8 Å,
2 Å switching windows), which is how one would attach D3 to an MLIP for condensed-phase
dynamics. The time to build the neighbor list is excluded for xnn (an MD engine supplies
it). The neighbor-list cost at 32 Å is not negligible on
its own, so beyond 300 atoms only the short-cutoff variant is run.
def water_cluster(n_water, seed=0):
# a cube of water at 1 g/cm3, molecules on a jittered grid with random orientations
rng = np.random.default_rng(seed)
side = (n_water * 29.9)**(1 / 3) # 29.9 A^3 per molecule
m = int(np.ceil(n_water ** (1 / 3)))
grid = np.array([[i, j, k] for i in range(m) for j in range(m) for k in range(m)])[:n_water] * side / m
atoms = Atoms()
for g in grid:
w = molecule("H2O"); w.rotate(rng.uniform(0, 360), rng.normal(size=3)); w.translate(g + rng.normal(0, 0.15, 3)); atoms += w
return atoms
def time_xnn(atoms, model, device, repeats=3):
model = model.to(device)
s = {"pos": atoms.positions, "atomic_numbers": atoms.numbers}
graph = structure_to_graph(s, model.cutoff, device=device)
wrapped = ForceStressOutput(model)
wrapped(graph) # warm-up (kernels, allocator)
if device == "cuda": torch.cuda.synchronize()
t0 = time.perf_counter()
for _ in range(repeats):
out = wrapped(graph)
if device == "cuda": torch.cuda.synchronize()
return (time.perf_counter() - t0) / repeats, float(out["energy"]) / HARTREE, graph.num_edges
def time_ref(atoms, cutoffs=None, repeats=3):
reference(atoms, cutoffs=cutoffs) # warm-up
t0 = time.perf_counter()
for _ in range(repeats):
e = float(reference(atoms, cutoffs=cutoffs)["energy"])
return (time.perf_counter() - t0) / repeats, e
upstream = dict(cutoff_pair=60 * BOHR, cutoff_triple=40 * BOHR, cutoff_cn=40 * BOHR)
md_style = dict(cutoff_pair=12.0, cutoff_triple=6.0, cutoff_cn=8.0, switch_width_pair=2.0, switch_width_triple=1.0)
md_style_ref = dict(disp2=12.0 / BOHR, disp3=6.0 / BOHR, cn=8.0 / BOHR)
sizes = [10, 30, 100, 250, 500]
timings = []
for n_w in sizes:
atoms = water_cluster(n_w)
row = {"N": len(atoms)}
if n_w <= 100:
row["s-dftd3 (upstream cutoffs)"], e_ref = time_ref(atoms)
row["xnn CPU (upstream cutoffs)"], e_cpu, row["edges (upstream)"] = time_xnn(atoms, D3Dispersion(s9=1.0, **upstream), "cpu")
row["|dE| upstream [Eh]"] = abs(e_cpu - e_ref)
if device == "cuda":
row["xnn GPU (upstream cutoffs)"], _, _ = time_xnn(atoms, D3Dispersion(s9=1.0, **upstream), "cuda")
row["s-dftd3 (MD cutoffs)"], _ = time_ref(atoms, cutoffs=md_style_ref)
row["xnn CPU (MD cutoffs)"], _, row["edges (MD)"] = time_xnn(atoms, D3Dispersion(s9=1.0, **md_style), "cpu")
if device == "cuda":
row["xnn GPU (MD cutoffs)"], _, _ = time_xnn(atoms, D3Dispersion(s9=1.0, **md_style), "cuda")
timings.append(row)
print({k: (f"{v:.3g}" if isinstance(v, float) else v) for k, v in row.items()})
{'N': 30, 's-dftd3 (upstream cutoffs)': '0.000723', 'xnn CPU (upstream cutoffs)': '0.00877', 'edges (upstream)': 870, '|dE| upstream [Eh]': '0', 'xnn GPU (upstream cutoffs)': '0.0657', 's-dftd3 (MD cutoffs)': '0.000689', 'xnn CPU (MD cutoffs)': '0.01', 'edges (MD)': 870, 'xnn GPU (MD cutoffs)': '0.0664'}
{'N': 90, 's-dftd3 (upstream cutoffs)': '0.0164', 'xnn CPU (upstream cutoffs)': '0.0541', 'edges (upstream)': 8010, '|dE| upstream [Eh]': '8.33e-17', 'xnn GPU (upstream cutoffs)': '0.071', 's-dftd3 (MD cutoffs)': '0.00706', 'xnn CPU (MD cutoffs)': '0.0408', 'edges (MD)': 8010, 'xnn GPU (MD cutoffs)': '0.0747'}
{'N': 300, 's-dftd3 (upstream cutoffs)': '0.581', 'xnn CPU (upstream cutoffs)': '1.34', 'edges (upstream)': 89700, '|dE| upstream [Eh]': '2.78e-16', 'xnn GPU (upstream cutoffs)': '0.305', 's-dftd3 (MD cutoffs)': '0.0346', 'xnn CPU (MD cutoffs)': '0.158', 'edges (MD)': 72610, 'xnn GPU (MD cutoffs)': '0.062'}
{'N': 750, 's-dftd3 (MD cutoffs)': '0.196', 'xnn CPU (MD cutoffs)': '0.722', 'edges (MD)': 292410, 'xnn GPU (MD cutoffs)': '0.126'}
{'N': 1500, 's-dftd3 (MD cutoffs)': '0.575', 'xnn CPU (MD cutoffs)': '1.88', 'edges (MD)': 600728, 'xnn GPU (MD cutoffs)': '0.162'}
fig, ax = plt.subplots(1, 2, figsize=(11, 4), sharey=True)
N = [r["N"] for r in timings]
for a, tag, keys in [(ax[0], "upstream cutoffs (60 / 40 / 40 bohr)", ["s-dftd3 (upstream cutoffs)", "xnn CPU (upstream cutoffs)", "xnn GPU (upstream cutoffs)"]),
(ax[1], "MD cutoffs (12 / 6 / 8 Å, switched)", ["s-dftd3 (MD cutoffs)", "xnn CPU (MD cutoffs)", "xnn GPU (MD cutoffs)"])]:
for key, style in zip(keys, ["ks-", "C0o-", "C3^-"]):
pts = [(r["N"], r[key]) for r in timings if key in r]
if pts:
a.loglog(*zip(*pts), style, label=key)
a.set_title(tag); a.set_xlabel("atoms"); a.grid(alpha=0.3); a.legend(fontsize=8)
ax[0].set_ylabel("wall time per energy+gradient evaluation [s]")
plt.tight_layout(); plt.show()

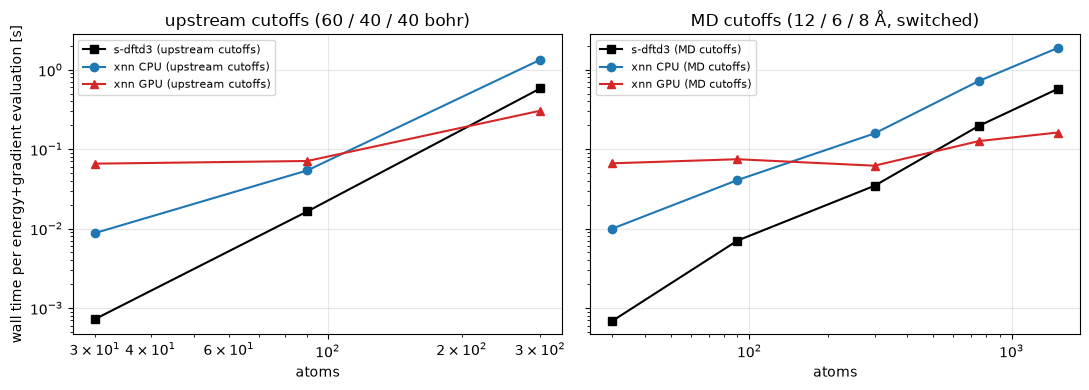

Reading the timings. With the upstream cutoffs every atom of a liquid has thousands
of neighbors inside 40 bohr, so the three-body sum – \(O(N\,n_{\rm nb}^2)\) triples – dominates
both codes, and the GPU is what makes it affordable. With MD-style cutoffs the triple count
drops by orders of magnitude and the D3 term costs a small fraction of a typical MLIP
evaluation. The |dE| column confirms that the shorter cutoffs are still evaluated
identically by both codes; what they change is the physics one chooses to include, and
the switching windows (an xnn extension) keep that choice smooth for dynamics.
3. D3 on top of a short-range MLIP, through every channel#
The wrapper adds the dispersion energy to any registered model: here an (untrained, but
structurally complete) MACE for water with a 4.5 Å neighborhood. The wrapper’s cutoff is
the D3 pair cutoff, the core sees only its own edges, and the same object deploys through
the eager AtomicGraph path, the ASE calculator, and the TorchScript export with its two
tensor ABIs (whole-system and LAMMPS pair-style). Forces and stress carry the D3 term.
cfg = from_dict({"model": {"name": "mace", "cutoff": 4.5, "n_interactions": 2, "n_rbf": 8, "n_features": 16,
"extra": {"species": [1, 8], "l_max": 2, "atomic_energies": [-13.6, -2041.0],
"dispersion": {"name": "d3", **md_style, "s9": 1.0}}}})
torch.manual_seed(0)
model = build_model(cfg.model).eval()
print(type(model).__name__, "around", type(model.model).__name__, "| neighbor-list cutoff", model.cutoff, "Å | core cutoff", model.model.cutoff, "Å")
box = water_cluster(20); box.set_cell([8.4, 8.4, 8.4]); box.pbc = True
graph = structure_to_graph({"pos": box.positions, "atomic_numbers": box.numbers, "cell": box.cell[:], "pbc": box.pbc}, model.cutoff)
eager = ForceStressOutput(model, compute_stress=True)(graph)
print(f"eager: E = {float(eager['energy']):.6f} eV = E_sr {float(eager['energy_sr']):.6f} + E_disp {float(eager['energy_disp']):.6f} "
f"(2-body {float(eager['energy_2body']):.4f}, ATM {float(eager['energy_3body']):+.4f}); CN range {float(eager['coordination_numbers'].min()):.2f}..{float(eager['coordination_numbers'].max()):.2f}")
box.calc = XNNCalculator(ForceStressOutput(model, compute_stress=True), cutoff=model.cutoff)
print(f"ASE: E = {box.get_potential_energy():.6f} eV, |F| max {np.abs(box.get_forces()).max():.4f} eV/Å, stress xx {box.get_stress()[0]:.6f} eV/ų")
scripted = torch.jit.script(TorchScriptPotential(model, model.cutoff).eval())
ts = scripted(torch.tensor(box.positions), torch.tensor(box.numbers), torch.tensor(box.cell[:]), torch.tensor(box.pbc))
print(f"TorchScript: E = {float(ts['energy']):.6f} eV, |dF| vs eager {float((ts['forces'] - eager['forces'].detach()).abs().max()):.1e}, "
f"|dstress| {float((ts['stress'] - eager['stress'][0].detach()).abs().max()):.1e}")
ei, cs = build_neighbor_list(torch.tensor(box.positions), model.cutoff, torch.tensor(box.cell[:]), torch.tensor(box.pbc))
pair = scripted.forward_lammps(torch.tensor(box.positions), ei, cs, torch.tensor(box.numbers), torch.tensor(box.cell[:]))
print(f"pair-style: E = {float(pair['energy']):.6f} eV (the LAMMPS ABI, neighbor list supplied; {ei.shape[1]} edges at {model.cutoff} Å)")
D3Dispersion around MACE | neighbor-list cutoff 12.0 Å | core cutoff 4.5 Å
eager: E = -41346.047549 eV = E_sr -41344.128236 + E_disp -1.919312 (2-body -1.9935, ATM +0.0742); CN range 0.99..2.02
ASE: E = -41346.047549 eV, |F| max 5.8047 eV/Å, stress xx -0.156413 eV/ų
TorchScript: E = -41346.047549 eV, |dF| vs eager 1.5e-14, |dstress| 7.5e-16
pair-style: E = -41346.047549 eV (the LAMMPS ABI, neighbor list supplied; 44416 edges at 12.0 Å)
Summary#
Accuracy. xnn reproduces
s-dftd3to ~1e-17 Eh in dispersion energies, gradients and virials, for the S22 complexes and for crystals; the dispersion contributions to interaction energies agree to better than 1e-12 kcal/mol.Speed. The Fortran reference is fast for small molecules; xnn’s vectorized evaluation scales to condensed-phase sizes on the GPU, and with MD-style cutoffs the D3 term is cheap next to the MLIP it supplements. The three-body term with the upstream 40 bohr cutoff is the one setting that should not be carried into large-scale MD.
Deployment. One
DFTD3module serves training and every deploy channel; a D3-corrected MACE exports to a self-contained TorchScript artifact with both tensor ABIs.
