ReaxFF in action: bond orders, charges, MD and dissociation#

What sets a reactive force field apart is not just its energies — it is the physically meaningful internal state it computes at every step: bond orders for every atom pair (van Duin et al. 2001, eq 2) and charges re-equilibrated at every geometry (EEM). This notebook takes the seed and trained ReaxFF-nn libraries from reaxff_rmd17_train_test.ipynb (run that first — it writes runs/reaxff_rmd17/ffield_*.json), plus the original classical ReaxFF with published parameters (the C/H/O combustion field of Chenoweth et al. 2008, CHO_cho_2008 (shipped with xnn in the SEAMM .frc format)), and uses those descriptors four ways:

  1. a static bond-order and charge analysis — original and trained force fields telling C=O double bonds from C–C single bonds;

  2. molecular dynamics through the standard ASE calculator, with bond-order and charge time series along the trajectory;

  3. a look at what equilibrium-only training data can and cannot teach a reactive force field, by running the same dynamics with both libraries;

  4. a C–H dissociation scan, the signature ReaxFF plot: valence terms decay smoothly with the bond order, so the energy reaches a finite dissociation plateau instead of a harmonic wall — and the one place in this notebook where the original field, parameterized on bond-breaking data, clearly beats the trained one.

0. Setup: load the libraries#

import os, time, warnings
warnings.filterwarnings("ignore")

import numpy as np
import torch
import matplotlib.pyplot as plt

torch.manual_seed(0)

from xnn.common.data import load_dataset, structure_to_graph
from xnn.common.models import ForceStressOutput
from xnn.ffnn.models import ReaxFF

SEED = "runs/reaxff_rmd17/ffield_seed.json"
TRAINED = "runs/reaxff_rmd17/ffield_trained.json"
assert os.path.exists(TRAINED), \
    "run reaxff_rmd17_train_test.ipynb first (it writes the libraries)"

# keep_intermediates exposes the per-evaluation internals (bond orders,
# correction factors, angle/torsion indices, ...) for analysis
seed_model = ReaxFF(SEED, keep_intermediates=True)
model = ReaxFF(TRAINED, keep_intermediates=True)
# the original classical ReaxFF, straight from a standard ffield text file
orig_model = ReaxFF("CHO_cho_2008", keep_intermediates=True)
seed_model.eval()
model.eval()
orig_model.eval()
print("species:", model.species, "| ReaxFF-nn:", model.nn,
      "| message steps:", model.messages)
print("original field:", orig_model.species, "| ReaxFF-nn:", orig_model.nn)

# a low-energy malonaldehyde frame as the starting structure
structures = load_dataset("rmd17", molecule="malonaldehyde", split="train")
frame = min(structures[:200], key=lambda s: s["energy"])
z = np.asarray(frame["atomic_numbers"])
pos0 = np.asarray(frame["pos"])
sym = {6: "C", 8: "O", 1: "H"}
print("atoms:", [f"{sym[zz]}{i}" for i, zz in enumerate(z)],
      " (O4=C0H5-C1H6H7-C2H8=O3)")

species: ['C', 'H', 'O'] | ReaxFF-nn: True | message steps: 1
original field: ['H', 'C', 'O'] | ReaxFF-nn: False
atoms: ['C0', 'C1', 'C2', 'O3', 'O4', 'H5', 'H6', 'H7', 'H8']  (O4=C0H5-C1H6H7-C2H8=O3)

1. Bond orders resolve the chemistry#

A single forward pass yields the corrected bond order of every pair and the EEM charges. Both force fields resolve the chemistry with no bonding information imposed: the two C=O double bonds stand apart from the C–C single bonds and the C–H bonds, and negative charge sits on the carbonyl oxygens. They differ in the numbers: the published field assigns the carbonyls near-full double-bond character (BO ≈ 2.0), while the trained bond-order networks put them at ≈ 1.4–1.5 with C–C at ≈ 0.9. Bond orders are a modeling choice rather than an observable; what matters is that every valence term in each field rides on its own bond orders.

def evaluate(m, p):
    """Energy, charges and a (pair -> bond order) dict for one geometry."""
    g = structure_to_graph({"pos": p, "atomic_numbers": z}, cutoff=m.cutoff)
    out = m(g)
    it = m.intermediates
    bm = it["bond_mask"]
    src = g.edge_index[0][bm]
    dst = g.edge_index[1][bm]
    bo = {}
    for e in range(len(src)):
        i, j = int(dst[e]), int(src[e])
        if i < j:
            bo[(i, j)] = float(it["bo0"][e])
    return float(out["energy"][0]), out["charges"].detach().numpy(), bo


e0, q0, bo0 = evaluate(model, pos0)
e_or, q_or, bo_or = evaluate(orig_model, pos0)
print("bond orders            original | trained")
pairs = sorted(set(bo_or) | set(bo0),
               key=lambda k: -max(bo_or.get(k, 0.0), bo0.get(k, 0.0)))
for i, j in pairs:
    a, b = bo_or.get((i, j), 0.0), bo0.get((i, j), 0.0)
    if max(a, b) > 0.2:
        print(f"  {sym[z[i]]}{i}-{sym[z[j]]}{j}:{a:18.2f} | {b:7.2f}")
for lab, q in (("original", q_or), ("trained ", q0)):
    print(f"EEM charges ({lab}):",
          "  ".join(f"{sym[zz]}{i}:{qq:+.2f}"
                    for i, (zz, qq) in enumerate(zip(z, q))))

bond orders            original | trained
  C2-O3:              2.07 |    1.48
  C0-O4:              1.96 |    1.43
  C1-C2:              1.11 |    0.91
  C0-C1:              1.08 |    0.86
  C1-H7:              0.95 |    0.32
  C0-H5:              0.95 |    0.31
  C1-H6:              0.94 |    0.30
  C2-H8:              0.94 |    0.29
EEM charges (original): C0:+0.17  C1:-0.23  C2:+0.16  O3:-0.24  O4:-0.24  H5:+0.04  H6:+0.10  H7:+0.19  H8:+0.05
EEM charges (trained ): C0:+0.09  C1:-0.19  C2:+0.10  O3:-0.27  O4:-0.26  H5:+0.11  H6:+0.12  H7:+0.19  H8:+0.11

2. Molecular dynamics through ASE#

XNNCalculator wraps the model (with autograd forces) as a standard ASE calculator; Langevin dynamics then just works. Two practical points, both standard ReaxFF practice:

  • the geometry is first relaxed with the force field itself (BFGS), so the dynamics starts in the model’s own basin;

  • the timestep is 0.1 fs — ReaxFF’s bond-order exponentials make bond vibrations stiff, and the original ReaxFF simulations use 0.1 fs for exactly this reason (Nielson et al. 2005).

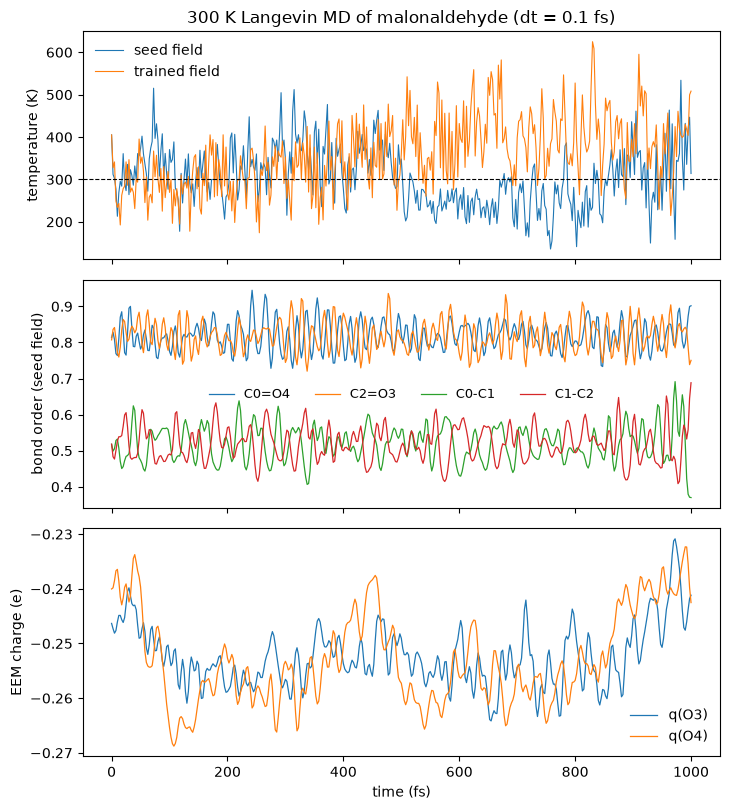

We run the same 1 ps protocol with both libraries and record the temperature and the four heavy-atom bond orders.

The published combustion field is left out of this particular comparison, and the reason is itself instructive: malonaldehyde sits far off its parameterization manifold. Its own equilibrium stretches the carbonyls to ≈ 1.3 Å (1.22 Å in the DFT data), thermal DFT frames land high on its inner repulsive wall (force deviations of several eV/Å, see the training notebook), and at 300 K it drives a spurious cyclization within a fraction of a picosecond. Published transferable parameters are not automatically a sound baseline for dynamics of an arbitrary molecule.

from ase import Atoms, units
from ase.optimize import BFGS
from ase.md.langevin import Langevin
from ase.md.velocitydistribution import MaxwellBoltzmannDistribution
from xnn.common.deploy import XNNCalculator

BONDS = [(0, 4, "C0=O4"), (2, 3, "C2=O3"), (0, 1, "C0-C1"), (1, 2, "C1-C2")]
N_STEPS, SAMPLE_EVERY, DT_FS = 10000, 25, 0.1


def run_md(m, label):
    """Relax with the model, then 1 ps of 300 K Langevin; return series."""
    atoms = Atoms(numbers=z, positions=pos0)
    atoms.calc = XNNCalculator(ForceStressOutput(m), cutoff=m.cutoff)
    BFGS(atoms, logfile=None).run(fmax=0.05, steps=300)
    np.random.seed(0)
    MaxwellBoltzmannDistribution(atoms, temperature_K=300, rng=np.random)
    dyn = Langevin(atoms, DT_FS * units.fs, temperature_K=300, friction=0.02,
                   rng=np.random)
    rec = {"t": [], "T": [], "bo": {lab: [] for _, _, lab in BONDS},
           "q_o3": [], "q_o4": []}

    def sample():
        _, q, bo = evaluate(m, atoms.get_positions())
        rec["t"].append(dyn.get_time() / units.fs)
        rec["T"].append(atoms.get_temperature())
        for i, j, lab in BONDS:
            rec["bo"][lab].append(bo.get((min(i, j), max(i, j)), 0.0))
        rec["q_o3"].append(q[3])
        rec["q_o4"].append(q[4])

    dyn.attach(sample, interval=SAMPLE_EVERY)
    t0 = time.time()
    dyn.run(N_STEPS)
    print(f"{label}: {N_STEPS} x {DT_FS} fs in {time.time() - t0:.0f} s | "
          f"<T> second half = "
          f"{np.mean(rec['T'][len(rec['T']) // 2:]):.0f} K | "
          f"max T = {max(rec['T']):.0f} K")
    return rec


rec_seed = run_md(seed_model, "seed field   ")
rec_trained = run_md(model, "trained field")

seed field   : 10000 x 0.1 fs in 157 s | <T> second half = 272 K | max T = 534 K
trained field: 10000 x 0.1 fs in 152 s | <T> second half = 402 K | max T = 625 K

fig, axes = plt.subplots(3, 1, figsize=(7.4, 8.2), sharex=True)
axes[0].plot(rec_seed["t"], rec_seed["T"], lw=0.8, label="seed field")
axes[0].plot(rec_trained["t"], rec_trained["T"], lw=0.8,
             label="trained field")
axes[0].axhline(300, color="k", ls="--", lw=0.8)
axes[0].set_ylabel("temperature (K)")
axes[0].set_title("300 K Langevin MD of malonaldehyde (dt = 0.1 fs)")
axes[0].legend(frameon=False)
for lab, series in rec_seed["bo"].items():
    axes[1].plot(rec_seed["t"], series, lw=0.9, label=lab)
axes[1].set_ylabel("bond order (seed field)")
axes[1].legend(frameon=False, ncol=4, fontsize=9)
axes[2].plot(rec_seed["t"], rec_seed["q_o3"], lw=0.9, label="q(O3)")
axes[2].plot(rec_seed["t"], rec_seed["q_o4"], lw=0.9, label="q(O4)")
axes[2].set_ylabel("EEM charge (e)")
axes[2].set_xlabel("time (fs)")
axes[2].legend(frameon=False)
fig.tight_layout()
fig.savefig("reaxff_md_bond_orders.png", dpi=150)
plt.show()

print("mean bond orders over the seed-field trajectory:")
for lab, series in rec_seed["bo"].items():
    print(f"  {lab}: {np.mean(series):.2f} +- {np.std(series):.2f}")
../../../../_images/f3003dbe20f1d3c16b4fe731c93069c2e47df421456b53189346fb6c9cf9520e.png
mean bond orders over the seed-field trajectory:
  C0=O4: 0.82 +- 0.04
  C2=O3: 0.82 +- 0.04
  C0-C1: 0.52 +- 0.05
  C1-C2: 0.52 +- 0.05

3. What equilibrium-only training data can(not) teach#

The two temperature traces above are the lesson. The seed field — generic but built so that every term decays smoothly to zero with its bond order — holds a clean 300 K. The trained field is far more accurate on the thermal manifold it was fitted to (see the parity plots in the training notebook), yet its trajectory heats up: fitted freely to ≤ 500 K configurations, nothing constrains its landscape between basins, and the molecule finds spuriously exothermic escape routes that release energy into the thermostat.

This is precisely why published ReaxFF and ReaxFF-nn training sets include bond-stretch scans, over/under-coordinated fragments and reaction-path configurations alongside thermal MD data: the functional form guarantees smooth bond breaking, but only data (or frozen physical parameters) can pin its energetics. The dissociation scan below shows the same thing in one coordinate.

4. The dissociation scan#

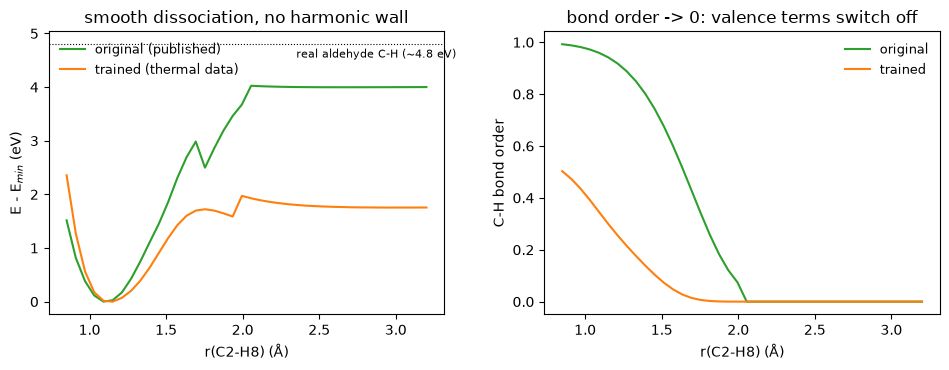

Stretching the aldehyde C–H bond shows the reactive functional form at work: the bond order decays smoothly to zero and with it every valence term, so the energy reaches a finite dissociation plateau — no harmonic wall, no cutoff kink. And here the tables turn. The original field was parameterized on combustion data full of exactly this event, and it shows: a well of the right depth (plateau ≈ 4.0 eV; a real aldehyde C–H is ≈ 4.8 eV) at the right bond length. The trained field reproduces the well region it saw data for, but its plateau (≈ 1.8 eV) is an extrapolation the ≤ 500 K training data never constrained — the one-coordinate picture of the coverage lesson above. Each field is right where its data was: the published one on the reaction coordinate, the trained one on the thermal manifold. That is the case for retraining published fields with reactive data included, rather than choosing between the two.

c_atom, h_atom = 2, 8                      # the aldehyde C-H of C2
u = pos0[h_atom] - pos0[c_atom]
u /= np.linalg.norm(u)
rs = np.linspace(0.85, 3.2, 40)


def scan(m):
    es, bos = [], []
    for r in rs:
        p = pos0.copy()
        p[h_atom] = pos0[c_atom] + u * r
        g = structure_to_graph({"pos": p, "atomic_numbers": z},
                               cutoff=m.cutoff)
        es.append(float(m(g)["energy"][0]))
        it = m.intermediates
        bm = it["bond_mask"]
        sel = (g.edge_index[1][bm] == c_atom) & (g.edge_index[0][bm] == h_atom)
        bos.append(float(it["bo0"][sel][0]) if bool(sel.any()) else 0.0)
    es = np.array(es)
    return es - es.min(), np.array(bos)


e_trained, bo_trained = scan(model)
e_orig, bo_orig = scan(orig_model)

fig, axes = plt.subplots(1, 2, figsize=(9.6, 3.8))
axes[0].plot(rs, e_orig, color="C2", label="original (published)")
axes[0].plot(rs, e_trained, color="C1", label="trained (thermal data)")
axes[0].axhline(4.8, color="k", ls=":", lw=0.8)
axes[0].text(2.35, 4.55, "real aldehyde C-H (~4.8 eV)", fontsize=8)
axes[0].set_xlabel("r(C2-H8) (Å)")
axes[0].set_ylabel("E - E$_{min}$ (eV)")
axes[0].set_title("smooth dissociation, no harmonic wall")
axes[0].legend(frameon=False, fontsize=9, loc="upper left")
axes[1].plot(rs, bo_orig, color="C2", label="original")
axes[1].plot(rs, bo_trained, color="C1", label="trained")
axes[1].set_xlabel("r(C2-H8) (Å)")
axes[1].set_ylabel("C-H bond order")
axes[1].set_title("bond order -> 0: valence terms switch off")
axes[1].legend(frameon=False, fontsize=9)
fig.tight_layout()
fig.savefig("reaxff_bond_dissociation.png", dpi=150)
plt.show()

print(f"original field: D(C-H) plateau ~ {e_orig[-1]:.2f} eV "
      f"(parameterized on bond-breaking data; a real aldehyde C-H is ~4.8 eV)")
print(f"trained field : D(C-H) plateau ~ {e_trained[-1]:.2f} eV "
      f"(an extrapolation: no stretched bonds in the training data)")
../../../../_images/ad6340016daf0b695e513237e7a9897e81c8faea4be41cfc4104e8e75f342a54.png
original field: D(C-H) plateau ~ 4.00 eV (parameterized on bond-breaking data; a real aldehyde C-H is ~4.8 eV)
trained field : D(C-H) plateau ~ 1.76 eV (an extrapolation: no stretched bonds in the training data)

Summary#

  • One forward pass of ReaxFF yields, besides energies/forces, the full set of reactive descriptors: per-pair bond orders, per-atom EEM charges, and the complete per-term energy decomposition (e_bond, e_angle, e_vdw, …).

  • Any ReaxFF parameter library runs ASE molecular dynamics through XNNCalculator (relax first, use the standard 0.1 fs ReaxFF timestep), with bond orders cleanly separating double from single bonds along the trajectory and charges fluctuating with the geometry.

  • Bond breaking is smooth by construction — but its energetics (and off-manifold dynamics) are only as good as the training data. Extending the training set with stretch and reaction-path configurations, as the ReaxFF-nn papers do, is what pins them.

  • The original classical ReaxFF runs in the same class straight from a published ffield text file, and the comparison cuts both ways: on this molecule’s thermal data it is roughly an order of magnitude less accurate than the trained field (see the training notebook), yet on the dissociation coordinate its combustion parameterization gives the physically sized well the trained field cannot know.
