Training & testing CACE on Argon MD data: xnn vs the original CACE, step by step#
This notebook runs a complete end-to-end interatomic-potential pipeline on a
realistic Argon dataset, twice, once with the xnn CACE
(xnn.gnn.models.cace) and once with the original
cace package, and compares the two
at every stage: data → graphs, model build, same-function weight transplant,
training (same data / loss / optimiser / schedule / split), and held-out test
metrics. It follows exactly the pattern of the MACE / NequIP / Allegro companions
(examples/gnn/{mace,nequip,allegro}/02_*).
Notebook
../../fidelity_checks/cace_verification.ipynbproves the two implementations are the same function block-by-block to machine precision; here we confirm it on the actual Argon data and compare full pipelines.
0. Setup: float32 on the GPU for training speed#
# silence the expected warnings
import logging, warnings
logging.disable(logging.WARNING)
warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=FutureWarning,
message="You are using `torch.load` with `weights_only=False`")
import time
import numpy as np
import torch
import matplotlib.pyplot as plt
import ase.io
torch.set_default_dtype(torch.float32)
torch.manual_seed(0)
DEVICE = "cuda" if torch.cuda.is_available() else "cpu"
DATA = "../../../datasets/argon_md" # shared across the examples
import xnn, cace
print("xnn:", xnn.__version__, "| cace (original): 0.1.0")
print("device:", DEVICE, "|", torch.cuda.get_device_name(0) if DEVICE == "cuda" else "")
xnn: 0.1.0 | cace (original): 0.1.0
device: cuda | NVIDIA A100 80GB PCIe
1. Load the data and the reference energy \(E_0\)#
The isolated-atom frame fixes the per-species shift \(E_0\); unwrapped MD
coordinates are wrap()ed. The few fully vaporised (edgeless) frames are
dropped from both pipelines. Note the two codes handle \(E_0\) differently:
xnn folds it into the model (atom_ref), the original cace subtracts it
from the training labels (AtomicData.from_atoms(..., atomic_energies=...)):
the same physics, applied at model level vs data level.
from ase import Atoms
def _to_atoms(s): # rebuild an ASE Atoms for the upstream (CACE) side
a = Atoms(numbers=s["atomic_numbers"], positions=s["pos"],
cell=s["cell"], pbc=[True, True, True])
a.info["REF_energy"] = float(s["energy"])
a.arrays["REF_forces"] = np.asarray(s["forces"])
return a
from xnn.common.data import AtomicDataset, load_dataset
CUTOFF, SPECIES = 6.0, [18]
E0 = {18: 0.0} # argon isolated-atom reference energy
train_structs = load_dataset("argon_md", split="train")
train_atoms = [_to_atoms(s) for s in train_structs]
test_structs = load_dataset("argon_md", split="test")
test_atoms = [_to_atoms(s) for s in test_structs]
def with_edges(structs, atoms_list):
ds = AtomicDataset(structs, CUTOFF)
keep = [i for i in range(len(structs)) if ds[i].num_edges > 0]
return ([structs[i] for i in keep], [atoms_list[i] for i in keep],
len(structs) - len(keep))
train_structs, train_atoms, n_tr = with_edges(train_structs, train_atoms)
test_structs, test_atoms, n_te = with_edges(test_structs, test_atoms)
print(f"train {len(train_structs)} / test {len(test_structs)} configs "
f"(dropped {n_tr}/{n_te} edgeless) | E0: {E0}")
train 193 / test 48 configs (dropped 7/2 edgeless) | E0: {18: 0.0}
3. Build both models with identical hyper-parameters#
A small-but-real CACE, close to the paper’s water model: \(N_{\rm emb}=2\) (single element), 6 trainable Bessel functions mixed into \(n=8\) radial channels, \(l_{\max}=3\), \(\nu_{\max}=3\), one message-passing layer with all three mechanisms, and the linear + [32, 16] MLP readout.
from cace.modules import BesselRBF as UpBessel, PolynomialCutoff as UpPoly
from cace.modules.atomwise import Atomwise
from cace.modules.forces import Forces
from cace.representations import Cace as UpCace
from cace.models.atomistic import NeuralNetworkPotential
from xnn.common.config import from_dict
from xnn.common.models import build_model, ForceStressOutput
NAB, NRBF, NRB, LMAX, NU, T = 2, 6, 8, 3, 3, 1
TYPES = ["M", "Ar", "Bchi"]
EW, FW, LR, WD, BS, EPOCHS = 1.0, 100.0, 0.01, 5e-7, 10, 80
def make_upstream():
rep = UpCace(zs=SPECIES, n_atom_basis=NAB, cutoff=CUTOFF,
radial_basis=UpBessel(cutoff=CUTOFF, n_rbf=NRBF, trainable=True),
cutoff_fn=UpPoly(cutoff=CUTOFF, p=6),
max_l=LMAX, max_nu=NU, num_message_passing=T,
type_message_passing=TYPES, n_radial_basis=NRB,
avg_num_neighbors=LAMBDA, embed_receiver_nodes=True)
atomwise = Atomwise(n_layers=3, n_hidden=[32, 16], output_key="CACE_energy",
add_linear_nn=True)
forces = Forces(calc_forces=True, calc_stress=False,
energy_key="CACE_energy", forces_key="CACE_forces")
return NeuralNetworkPotential(representation=rep,
output_modules=[atomwise, forces])
# ---- xnn model (core Config; upstream Cace(...) constructor spellings also
# ---- work via the key-translation registry in xnn.common.config.translate) ----
core = from_dict({
"model": {"name": "cace", "cutoff": CUTOFF, "n_interactions": T, "n_rbf": NRBF,
"species": SPECIES, "n_atom_basis": NAB, "n_radial_basis": NRB,
"max_l": LMAX, "max_nu": NU, "message_types": TYPES,
"embed_receiver_nodes": True, "avg_num_neighbors": LAMBDA,
"atomic_energies": [E0[18]]},
"data": {"batch_size": BS},
"optim": {"lr": LR, "weight_decay": WD, "epochs": EPOCHS, "energy_weight": EW,
"force_weight": FW, "scheduler": "plateau"},
"device": DEVICE, "seed": 0, "output_dir": "runs/argon_xnn",
})
torch.manual_seed(0)
xnn_model = ForceStressOutput(build_model(core.model)).to(DEVICE)
torch.manual_seed(0)
cace_nnp = make_upstream().to(DEVICE)
# one batch through the upstream model lazy-initializes Bchi's H net + the readout
b0 = next(iter(cace_tg.dataloader.DataLoader(dataset=up_train[:2], batch_size=2))).to(DEVICE)
_ = cace_nnp(b0.to_dict(), training=True)
p_x = sum(p.numel() for p in xnn_model.parameters())
p_u = sum(p.numel() for p in cace_nnp.parameters())
print(f"parameters: xnn {p_x} | original CACE {p_u} "
f"(xnn adds the 200-entry atom_ref table: {p_x - p_u})")
parameters: xnn 14805 | original CACE 14605 (xnn adds the 200-entry atom_ref table: 200)
3b. Are they the same function? Weight transplant on the Argon data#
Copy every weight from the original CACE into the xnn model and compare
on real periodic Argon test configurations (float32 round-off; ~\(10^{-15}\)
relative in float64, see notebook 01). The xnn energies include \(E_0\) via
atom_ref, so we add \(N_{\rm atoms} E_0\) to the upstream predictions.
def transplant(x, rep, readout):
with torch.no_grad():
x.embed_sender.copy_(rep.node_embedding_sender.embedding_weights)
x.embed_receiver.copy_(rep.node_embedding_receiver.embedding_weights)
x.rbf.freqs.copy_(rep.radial_basis.bessel_weights * float(rep.cutoff))
x.radial_transform.weight.copy_(torch.stack(list(rep.radial_transform.weights)))
for t, (nm, ar, bchi) in enumerate(rep.message_passing_list):
xi = x.interactions[t]
if nm is not None:
xi.memory.memory_coef.copy_(torch.stack(list(nm.memory_coef)))
if ar is not None:
xi.message_ar.prefactor.copy_(torch.stack(list(ar.prefactor)))
xi.message_ar.inv_r0.copy_(torch.stack(list(ar.invr0)))
if bchi is not None:
xi.message_bchi.h.weight.copy_(bchi.hnet[0].linear.weight)
xi.message_bchi.h.bias.copy_(bchi.hnet[0].linear.bias)
for j, dense in enumerate(readout.outnet):
x.readout_mlp[2 * j].weight.copy_(dense.linear.weight)
x.readout_mlp[2 * j].bias.copy_(dense.linear.bias)
x.readout_linear.weight.copy_(readout.linear_nn.linear.weight)
x.readout_linear.bias.copy_(readout.linear_nn.linear.bias)
transplant(xnn_model.model, cace_nnp.representation, cace_nnp.output_modules[0])
dE, dF = [], []
for k in range(8):
ox = xnn_model(xnn_test[k].to(DEVICE))
b = next(iter(cace_tg.dataloader.DataLoader(dataset=[up_test[k]], batch_size=1))).to(DEVICE)
ou = cace_nnp(b.to_dict(), training=True)
n_at = len(test_structs[k]["atomic_numbers"])
dE.append(abs(float(ox["energy"]) - (float(ou["CACE_energy"]) + n_at * E0[18])))
dF.append(np.abs(ox["forces"].detach().cpu().numpy()
- ou["CACE_forces"].detach().cpu().numpy()).max())
print("transplanted models on Argon test configs (float32):")
print(f" max |E_xnn - E_cace| = {max(dE):.2e} eV | "
f"max |F_xnn - F_cace| = {max(dF):.2e} eV/A -> identical to round-off")
# re-initialize both freshly for the fair training comparison below
torch.manual_seed(0)
xnn_model = ForceStressOutput(build_model(core.model)).to(DEVICE)
torch.manual_seed(0)
cace_nnp = make_upstream().to(DEVICE)
_ = cace_nnp(b0.to_dict(), training=True)
transplanted models on Argon test configs (float32):
max |E_xnn - E_cace| = 4.96e-05 eV | max |F_xnn - F_cace| = 9.98e-07 eV/A -> identical to round-off
4a. Train the xnn model (xnn.train.Trainer)#
from torch.utils.data import Subset
from xnn.common.train import Trainer
trainer = Trainer(core, Subset(xnn_train, train_idx), Subset(xnn_train, val_idx))
trainer.model = xnn_model.to(trainer.device)
trainer.opt = torch.optim.Adam(trainer.model.parameters(), lr=LR, weight_decay=WD)
trainer.sched = torch.optim.lr_scheduler.ReduceLROnPlateau(trainer.opt, patience=10)
hist_x = {"train": [], "val": []}
def _rec(epoch, tr, va):
hist_x["train"].append(tr.get("loss")); hist_x["val"].append(va.get("loss"))
trainer._log = _rec
t0 = time.time(); trainer.fit(); t_x = time.time() - t0
print(f"xnn: {EPOCHS} epochs in {t_x:.1f} s | "
f"final train {hist_x['train'][-1]:.4e} val {hist_x['val'][-1]:.4e}")
xnn: 80 epochs in 167.3 s | final train 4.7296e-04 val 2.9571e-04
4b. Train the original CACE: same data, loss, optimiser, schedule#
(The packaged route is cace.tasks.TrainingTask; a transparent hand-rolled
loop guarantees identical loss/optimiser/schedule to the xnn Trainer. The
upstream labels are \(E_0\)-subtracted, the xnn model carries \(E_0\) in
atom_ref; the losses see the same residuals.)
tr_loader = cace_tg.dataloader.DataLoader(dataset=[up_train[i] for i in train_idx],
batch_size=BS, shuffle=True)
va_loader = cace_tg.dataloader.DataLoader(dataset=[up_train[i] for i in val_idx],
batch_size=BS, shuffle=False)
opt = torch.optim.Adam(cace_nnp.parameters(), lr=LR, weight_decay=WD)
sched = torch.optim.lr_scheduler.ReduceLROnPlateau(opt, patience=10)
def up_loss(pred, b):
n = torch.bincount(b.batch).to(pred["CACE_energy"].dtype)
e = (((pred["CACE_energy"] - b.energy) / n) ** 2).mean()
return EW * e + FW * ((pred["CACE_forces"] - b.forces) ** 2).mean()
hist_u = {"train": [], "val": []}
t0 = time.time()
for epoch in range(EPOCHS):
cace_nnp.train(); tl = 0.0
for b in tr_loader:
b = b.to(DEVICE)
loss = up_loss(cace_nnp(b.to_dict(), training=True), b)
opt.zero_grad(); loss.backward(); opt.step()
tl += float(loss.detach())
cace_nnp.eval(); vl = 0.0
for b in va_loader:
b = b.to(DEVICE)
vl += float(up_loss(cace_nnp(b.to_dict(), training=False), b).detach())
tl /= len(tr_loader); vl /= len(va_loader)
sched.step(vl)
hist_u["train"].append(tl); hist_u["val"].append(vl)
t_u = time.time() - t0
print(f"cace: {EPOCHS} epochs in {t_u:.1f} s | "
f"final train {hist_u['train'][-1]:.4e} val {hist_u['val'][-1]:.4e}")
cace: 80 epochs in 2476.1 s | final train 7.1243e-04 val 5.0509e-04

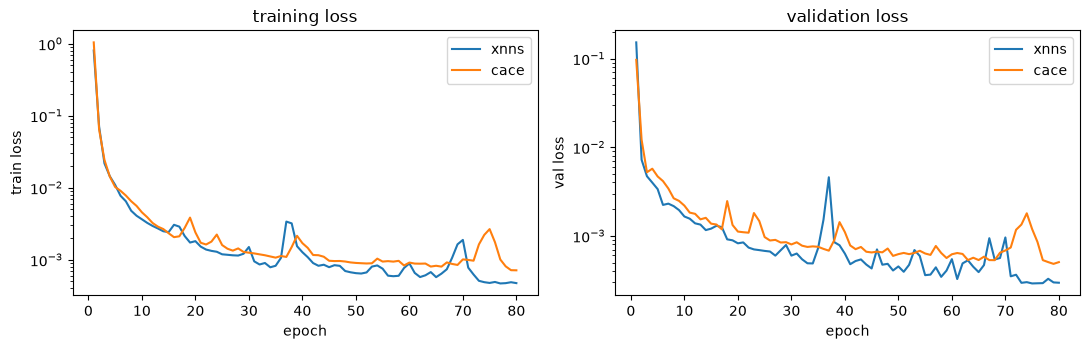

Training-loss curves: both models#
fig, ax = plt.subplots(1, 2, figsize=(11, 3.6))
ep = range(1, EPOCHS + 1)
for a, key, ttl in [(ax[0], "train", "training loss"), (ax[1], "val", "validation loss")]:
a.plot(ep, hist_x[key], label="xnn"); a.plot(ep, hist_u[key], label="cace")
a.set_yscale("log"); a.set_xlabel("epoch"); a.set_ylabel(key + " loss")
a.legend(); a.set_title(ttl)
plt.tight_layout(); plt.savefig("argon_loss_curves.png", dpi=120); plt.show()
print(f"training time: xnn {t_x:.0f}s cace {t_u:.0f}s")
training time: xnn 167s cace 2476s

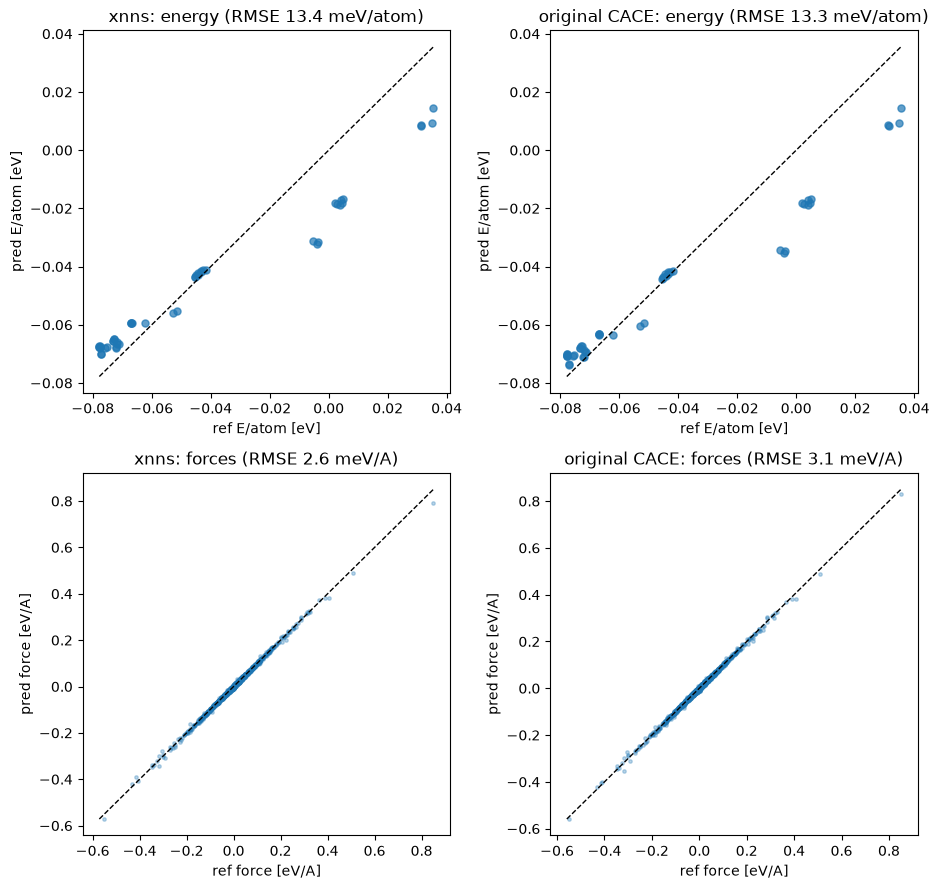

5. Evaluate both trained models on the held-out test set#
def eval_xnn(model):
model.eval(); Ep, Er, na, Fp, Fr = [], [], [], [], []
for s, i in zip(test_structs, range(len(xnn_test))):
out = model(xnn_test[i].to(DEVICE))
Ep.append(float(out["energy"].detach())); Er.append(s["energy"]); na.append(len(s["atomic_numbers"]))
Fp.append(out["forces"].detach().cpu().numpy()); Fr.append(s["forces"])
return map(np.array, (Ep, Er, na)), np.concatenate(Fp), np.concatenate(Fr)
def eval_upstream(model):
model.eval(); Ep, Er, na, Fp, Fr = [], [], [], [], []
for s, d in zip(test_structs, up_test):
b = next(iter(cace_tg.dataloader.DataLoader(dataset=[d], batch_size=1))).to(DEVICE)
out = model(b.to_dict(), training=False)
n_at = len(s["atomic_numbers"])
Ep.append(float(out["CACE_energy"].detach()) + n_at * E0[18])
Er.append(s["energy"]); na.append(n_at)
Fp.append(out["CACE_forces"].detach().cpu().numpy()); Fr.append(s["forces"])
return map(np.array, (Ep, Er, na)), np.concatenate(Fp), np.concatenate(Fr)
def metrics(EpErNa, Fp, Fr):
Ep, Er, na = EpErNa
e = (Ep - Er) / na * 1000.0; f = (Fp - Fr) * 1000.0
return dict(e_rmse=np.sqrt((e**2).mean()), e_mae=np.abs(e).mean(),
f_rmse=np.sqrt((f**2).mean()), f_mae=np.abs(f).mean(),
Ep=Ep/na, Er=Er/na, Fp=Fp, Fr=Fr)
res_x = metrics(*eval_xnn(trainer.model))
res_u = metrics(*eval_upstream(cace_nnp))
print(f"{'metric':<24}{'xnn':>10}{'original CACE':>16}")
print("-" * 50)
for k, lbl in [("e_rmse", "energy RMSE [meV/atom]"), ("e_mae", "energy MAE [meV/atom]"),
("f_rmse", "force RMSE [meV/A]"), ("f_mae", "force MAE [meV/A]")]:
print(f"{lbl:<24}{res_x[k]:>10.2f}{res_u[k]:>16.2f}")
metric xnn original CACE
--------------------------------------------------
energy RMSE [meV/atom] 13.45 13.26
energy MAE [meV/atom] 10.52 9.28
force RMSE [meV/A] 2.57 3.09
force MAE [meV/A] 1.43 1.97
Side-by-side parity plots#
fig, ax = plt.subplots(2, 2, figsize=(9.5, 9))
rng = np.random.default_rng(0)
idx = rng.choice(res_x["Fr"].size, size=min(4000, res_x["Fr"].size), replace=False)
for col, (res, name) in enumerate([(res_x, "xnn"), (res_u, "original CACE")]):
a0 = ax[0, col]
lim = [min(res["Er"].min(), res["Ep"].min()), max(res["Er"].max(), res["Ep"].max())]
a0.plot(lim, lim, "k--", lw=1); a0.scatter(res["Er"], res["Ep"], s=26, alpha=0.7)
a0.set_xlabel("ref E/atom [eV]"); a0.set_ylabel("pred E/atom [eV]")
a0.set_title(f"{name}: energy (RMSE {res['e_rmse']:.1f} meV/atom)")
a1 = ax[1, col]
fr, fp = res["Fr"].ravel()[idx], res["Fp"].ravel()[idx]
lim = [min(fr.min(), fp.min()), max(fr.max(), fp.max())]
a1.plot(lim, lim, "k--", lw=1); a1.scatter(fr, fp, s=6, alpha=0.3)
a1.set_xlabel("ref force [eV/A]"); a1.set_ylabel("pred force [eV/A]")
a1.set_title(f"{name}: forces (RMSE {res['f_rmse']:.1f} meV/A)")
plt.tight_layout(); plt.savefig("argon_parity_xnn_vs_cace.png", dpi=120); plt.show()
6. ASE calculators (deployment): both codes#
(The upstream CACECalculator needs one small compatibility shim: it stores
the energy as a shape-(1,) array, and float() of a size-1 array was
removed in numpy ≥ 2; the subclass below finishes the conversion.)
from ase import Atoms
from ase.calculators.calculator import all_changes
from xnn.common.deploy import XNNCalculator
from cace.calculators import CACECalculator
class PatchedCACECalculator(CACECalculator):
'''Upstream stores energy as a shape-(1,) array; float() of it raises on numpy>=2.'''
def calculate(self, atoms=None, properties=None, system_changes=all_changes):
try:
super().calculate(atoms, properties, system_changes)
except TypeError: # forces/stress are already in results at this point
self.results["energy"] = float(np.asarray(self.results["energy"]).reshape(-1)[0])
self.results["forces"] = np.asarray(self.results["forces"], dtype=np.float64)
return self.results
s = test_structs[0]
atoms = Atoms(numbers=s["atomic_numbers"], positions=s["pos"], cell=s["cell"], pbc=True)
atoms.calc = XNNCalculator(trainer.model.to("cpu"), cutoff=CUTOFF)
e_x = atoms.get_potential_energy()
atoms_u = atoms.copy()
atoms_u.calc = PatchedCACECalculator(cace_nnp.to("cpu"), device="cpu",
energy_key="CACE_energy", forces_key="CACE_forces",
atomic_energies=E0)
e_u = atoms_u.get_potential_energy()
print(f"ASE single point: xnn E = {e_x:.4f} eV | original CACE E = {e_u:.4f} eV | "
f"reference E = {s['energy']:.4f} eV")
ASE single point: xnn E = -26.9191 eV | original CACE E = -27.9981 eV | reference E = -31.0395 eV
Summary: every stage compared#
stage |
result |
|---|---|
Data → graphs |
identical edge sets from the xnn neighbour list and upstream matscipy |
Model build |
identical architecture; parameter counts match except xnn’s 200-entry |
Same function? |
weight transplant → identical E and F on periodic Argon (float32 round-off) |
Training |
same data / loss / optimiser / schedule → comparable loss curves |
Test accuracy |
energy and force RMSE/MAE agree between the two implementations |
The xnn CACE is a faithful re-implementation of the original CACE with zero
extra dependencies (not even e3nn); residual metric differences come only from
independent initialisation and shuffling. The companion notebook
cace_argon_density_md.ipynb runs NPT MD with both codes.
