DFT-D3 dispersion, block by block: reproducing the reference simple-dftd3 with xnn#
DFT-D3 (Grimme, Antony, Ehrlich & Krieg, J. Chem. Phys. 132, 154104, 2010) made the dispersion correction geometry dependent: TD-DFT reference \(C_6\) coefficients of several reference systems per element are interpolated in a fractional coordination number (eqs 15–16), \(C_8\) follows from the \(C_6\) (eqs 6, 9), and a damped pairwise sum (eqs 3–4) plus an optional Axilrod–Teller–Muto three-body term (eqs 11–14) gives the dispersion energy. The BJ variant (Grimme, Ehrlich & Goerigk, J. Comput. Chem. 32, 1456, 2011) replaced the zero damping by rational damping to a finite short-range value.
In xnn this is xnn.common.models.D3Dispersion, a model-agnostic add-on that
stands alone as the model "d3" or wraps any short-range model
(extra: {dispersion: {name: d3, ...}}), sharing its cutoff, weighting, three-body and
deployment machinery with the D4 add-on (xnn.common.models.dispersion). The
implementation is an independent one written from the two papers; this notebook checks
every block against the reference implementation
simple-dftd3 (v1.6.0, through its Python
package dftd3), for all four damping functions it offers.
Reference code. xnn does not copy, vendor, link or import any of simple-dftd3’s
code; the package is used here purely as an external oracle. The reference data of the
method (TD-DFT \(C_6\) coefficients, reference CNs, pair cutoff radii) are numerical values
extracted from the published sources by tools/build_d3_reference.py. Unlike the dftd4
wheel, this package has no OpenMP clash with torch, but we keep the same import order
out of habit.
import numpy as np
from dftd3.interface import (DispersionModel, RationalDampingParam, ZeroDampingParam,
ModifiedZeroDampingParam, OptimizedPowerDampingParam)
import logging, warnings
logging.disable(logging.WARNING)
warnings.filterwarnings("ignore")
import torch
import matplotlib.pyplot as plt
from ase import Atoms
from ase.build import molecule, bulk
torch.set_default_dtype(torch.float64)
import xnn
from xnn.common.data import structure_to_graph, collate
from xnn.common.models import D3Dispersion, DFTD3, ForceStressOutput
from xnn.common.models.d3 import PBE0_D3BJ, PBE0_D3ZERO
from xnn.common.models.dispersion import BOHR, HARTREE
print("xnn:", xnn.__version__, "| simple-dftd3 (reference) 1.6.0")
print("PBE0-D3(BJ):", PBE0_D3BJ, "\nPBE0-D3(0): ", PBE0_D3ZERO)
xnn: 0.2.1 | simple-dftd3 (reference) 1.6.0
PBE0-D3(BJ): {'s6': 1.0, 's8': 1.2177, 'a1': 0.4145, 'a2': 4.8593, 's9': 0.0, 'alp': 14.0}
PBE0-D3(0): {'s6': 1.0, 's8': 0.928, 'rs6': 1.287, 'rs8': 1.0, 's9': 0.0, 'alp': 14.0}
Helpers#
Both codes are driven in atomic units. simple-dftd3 reports the gradient and the
strain derivative (its “virial”); xnn gives forces and the stress
\(\sigma = V^{-1}\,\partial E/\partial\epsilon\). The damping-parameter sets below are the
PBE0 entries of the two papers (BJ: 2011 table 2; zero: 2010 table IV) and, for the
modified-zero and optimized-power variants, the PBE0 sets of the reference code.
# (damping, upstream parameter object, xnn options)
VARIANTS = {
"BJ (rational)": ("bj", RationalDampingParam(s6=1.0, s8=1.2177, s9=1.0, a1=0.4145, a2=4.8593, alp=14.0),
dict(s9=1.0)),
"zero": ("zero", ZeroDampingParam(s6=1.0, s8=0.928, s9=1.0, rs6=1.287, rs8=1.0, alp=14.0),
dict(s9=1.0)),
"modified zero": ("mzero", ModifiedZeroDampingParam(s6=1.0, s8=0.000081, s9=1.0, rs6=2.077949, rs8=1.0, alp=14.0, bet=0.116755),
dict(s8=0.000081, rs6=2.077949, bet=0.116755, s9=1.0)),
"optimized power": ("op", OptimizedPowerDampingParam(s6=0.8829, s8=0.0, s9=1.0, a1=0.150, a2=4.750, alp=14.0, bet=6.0),
dict(s6=0.8829, s8=0.0, a1=0.150, a2=4.750, bet=6.0, s9=1.0)),
}
def reference(atoms, param, cutoffs=None):
periodic = bool(atoms.pbc.any())
m = DispersionModel(atoms.numbers, atoms.positions / BOHR,
lattice=atoms.cell[:] / BOHR if periodic else None,
periodic=np.array(atoms.pbc) if periodic else None)
if cutoffs:
m.set_realspace_cutoff(**cutoffs)
return m.get_dispersion(param, grad=True)
def xnn_d3(atoms, model=None, **options):
model = model or D3Dispersion(**options)
s = {"pos": atoms.positions, "atomic_numbers": atoms.numbers}
if atoms.pbc.any():
s["cell"], s["pbc"] = atoms.cell[:], atoms.pbc
graph = structure_to_graph(s, model.cutoff)
out = ForceStressOutput(model, compute_stress=bool(atoms.pbc.any()))(graph)
out = {k: v.detach() for k, v in out.items()}
out["energy_au"] = float(out["energy"]) / HARTREE
out["gradient_au"] = -out["forces"].numpy() / HARTREE * BOHR
if atoms.pbc.any():
out["virial_au"] = out["stress"][0].numpy() / HARTREE * BOHR**3 * (atoms.get_volume() / BOHR**3)
return out
def report(systems, variant):
damping, param, opts = VARIANTS[variant]
print(f"--- {variant} ---")
print(f"{'system':26s} {'N':>3s} {'E [Eh]':>18s} {'|dE| [Eh]':>10s} {'|dgrad|':>9s} {'|dvirial|':>10s}")
for name, atoms in systems.items():
ref, mine = reference(atoms, param), xnn_d3(atoms, damping=damping, **opts)
dvir = np.abs(mine["virial_au"] - ref["virial"]).max() if atoms.pbc.any() else float("nan")
print(f"{name:26s} {len(atoms):3d} {float(ref['energy']):18.12e} {abs(mine['energy_au'] - float(ref['energy'])):10.1e} "
f"{np.abs(mine['gradient_au'] - ref['gradient']).max():9.1e} {dvir:10.1e}")
Block 1: Coordination numbers and the CN-dependent \(C_6\) · eqs 15–16#
The exponential counting function with \(k_1 = 16\) and the 4/3-scaled covalent radii, and the Gaussian interpolation (\(k_3 = 4\)) over the reference systems. The reference code exposes neither CN nor \(C_6\) directly, so this block checks xnn against the paper’s published numbers: the free-atom rare-gas \(C_6\) and the sp³/sp²/sp carbon values of table II, and the shape of fig 5 (the \(C_6^{CC}\), \(C_6^{NN}\), \(C_6^{OO}\) curves vs CN, from ~49 to ~18 for carbon).
core = DFTD3()
table2 = {"He-He": (2, 2, 1.54), "Ne-Ne": (10, 10, 6.14), "Ar-Ar": (18, 18, 64.2), "Kr-Kr": (36, 36, 129.7),
"Xe-Xe": (54, 54, 288.6), "Rn-Rn": (86, 86, 410.5)}
print(f"{'pair':8s} {'paper table II (TDDFT)':>24s} {'xnn reference table':>20s}")
for name, (zi, zj, val) in table2.items():
print(f"{name:8s} {val:24.2f} {float(core.c6ref[0, 0, zi, zj]):20.2f}")
# carbon in ethane (CN ~4, ref 5), ethene (CN ~3, ref 4), ethyne (CN ~2, ref 3): table II gives 18.1 / 25.7 / 29.3
for label, ref_idx, val in [("C-C (sp3)", 4, 18.1), ("C-C (sp2)", 3, 25.7), ("C-C (sp)", 2, 29.3)]:
print(f"{label:10s} paper {val:6.1f} xnn {float(core.c6ref[ref_idx, ref_idx, 6, 6]):6.2f} (reference CN {float(core.refcn[ref_idx, 6]):.4f})")

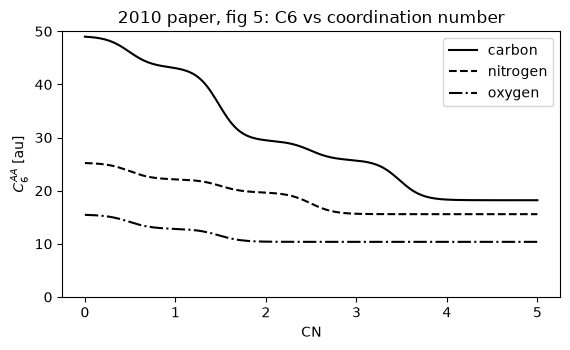

cn = torch.linspace(0.0, 5.0, 201)
fig, ax = plt.subplots(figsize=(5.8, 3.6))
for Z, name, style in [(6, "carbon", "-"), (7, "nitrogen", "--"), (8, "oxygen", "-.")]:
z = torch.full((201,), Z, dtype=torch.long)
w = core.reference_weights(z, cn)
c6 = core.c6_matrix(z, w, core._species_vectors(z, w)).diagonal()
ax.plot(cn.numpy(), c6.numpy(), "k", ls=style, label=name)
ax.set_xlabel("CN"); ax.set_ylabel(r"$C_6^{AA}$ [au]"); ax.set_ylim(0, 50); ax.legend(); ax.set_title("2010 paper, fig 5: C6 vs coordination number")
plt.tight_layout(); plt.show()
pair paper table II (TDDFT) xnn reference table
He-He 1.54 1.56
Ne-Ne 6.14 6.29
Ar-Ar 64.20 64.65
Kr-Kr 129.70 130.40
Xe-Xe 288.60 290.22
Rn-Rn 410.50 412.83
C-C (sp3) paper 18.1 xnn 18.21 (reference CN 3.9844)
C-C (sp2) paper 25.7 xnn 25.78 (reference CN 2.9987)
C-C (sp) paper 29.3 xnn 29.36 (reference CN 1.9985)
Block 2: Two-body energies for the four damping functions · 2010 eq 4, 2011 eq 5#
Energies, gradients and (for periodic systems) virials against s-dftd3 for molecules
of increasing size, with the ATM term switched on (\(s_9 = 1\)) so that the
three-body block is exercised at the same time. The zero and modified-zero variants
use the tabulated pair cutoff radii \(R_0^{AB}\) (sec II.D), BJ and optimized power the
\(C_8/C_6\) radii of 2011 eq 7.
molecules = {"H2O": molecule("H2O"), "NH3": molecule("NH3"), "C6H6": molecule("C6H6"),
"CH3CH2OH": molecule("CH3CH2OH"), "C60": molecule("C60")}
for variant in VARIANTS:
report(molecules, variant)
--- BJ (rational) ---
system N E [Eh] |dE| [Eh] |dgrad| |dvirial|
H2O 3 -2.768882466396e-04 1.1e-19 1.7e-20 nan
NH3 4 -5.886073790842e-04 4.3e-19 2.7e-20 nan
C6H6 12 -9.349028322112e-03 3.5e-18 9.2e-19 nan
CH3CH2OH 9 -3.458363342132e-03 4.3e-19 4.7e-20 nan
C60 60 -1.647438695262e-01 8.3e-17 9.3e-18 nan
--- zero ---
system N E [Eh] |dE| [Eh] |dgrad| |dvirial|
H2O 3 -4.644341818395e-06 0.0e+00 1.7e-21 nan
NH3 4 -2.108709186781e-05 1.7e-20 3.4e-20 nan
C6H6 12 -3.102992576496e-03 4.3e-19 2.7e-19 nan
CH3CH2OH 9 -1.867384951417e-03 8.7e-19 7.0e-19 nan
C60 60 -6.769570637220e-02 2.8e-17 4.3e-18 nan
--- modified zero ---
system N E [Eh] |dE| [Eh] |dgrad| |dvirial|
H2O 3 -3.506926280896e-04 1.6e-19 2.4e-19 nan
NH3 4 -9.826380693574e-04 1.3e-18 6.2e-19 nan
C6H6 12 -2.242281655191e-02 3.5e-18 2.0e-18 nan
CH3CH2OH 9 -5.737490760271e-03 1.7e-18 5.4e-19 nan
C60 60 -3.349665585052e-01 5.6e-17 2.2e-17 nan
--- optimized power ---
system N E [Eh] |dE| [Eh] |dgrad| |dvirial|
H2O 3 -4.081700350218e-06 1.7e-21 3.4e-21 nan
NH3 4 -1.667097267658e-05 6.8e-21 1.7e-20 nan
C6H6 12 -4.940350244912e-03 0.0e+00 3.3e-19 nan
CH3CH2OH 9 -1.323450154247e-03 2.2e-19 1.9e-19 nan
C60 60 -1.172030560151e-01 1.4e-17 6.5e-18 nan
Block 3: Three-body term and periodic systems · eqs 11–14#
The ATM term with zero damping on the 4/3-scaled pair radii and exponent \(\alpha_6 + 2\); switching it off must give exactly the two-body energy in both codes. Crystals exercise the lattice sums of both terms (the primitive rocksalt and diamond cells, a sheared silicon cell, graphite and a small periodic water box).
c60 = molecule("C60")
for variant in ("BJ (rational)", "zero"):
damping, param, opts = VARIANTS[variant]
p_off = (RationalDampingParam if damping == "bj" else ZeroDampingParam)
kw = dict(s6=1.0, s9=0.0, alp=14.0, **({"s8": 1.2177, "a1": 0.4145, "a2": 4.8593} if damping == "bj" else {"s8": 0.928, "rs6": 1.287, "rs8": 1.0}))
e_two_ref = float(reference(c60, p_off(**kw))["energy"])
mine = xnn_d3(c60, damping=damping, s9=1.0)
print(f"C60 {variant:14s}: E2 s-dftd3 {e_two_ref:.12e} xnn {float(mine['energy_2body']) / HARTREE:.12e} |diff| {abs(float(mine['energy_2body']) / HARTREE - e_two_ref):.1e}; "
f"E3 (xnn) = {float(mine['energy_3body']) / HARTREE:+.4e} Eh = {abs(float(mine['energy_3body']) / float(mine['energy_2body'])) * 100:.1f} % of |E2|")
from ase.lattice.hexagonal import Graphite
rng = np.random.default_rng(0)
box = Atoms(cell=[6.2] * 3, pbc=True)
for _ in range(3):
w = molecule("H2O"); w.rotate(rng.uniform(0, 360), rng.normal(size=3)); w.translate(rng.uniform(0, 6.2, 3)); box += w
sheared = bulk("Si", "diamond", a=5.43); c = sheared.cell[:].copy(); c[1, 0] += 0.5; sheared.set_cell(c, scale_atoms=False)
crystals = {"NaCl rocksalt": bulk("NaCl", "rocksalt", a=5.64), "Si diamond": bulk("Si", "diamond", a=5.43),
"Si sheared cell": sheared, "graphite": Graphite("C", latticeconstant={"a": 2.46, "c": 6.70}),
"water box (9 atoms)": box}
for variant in ("BJ (rational)", "zero"):
report(crystals, variant)
C60 BJ (rational) : E2 s-dftd3 -1.693070178143e-01 xnn -1.693070178143e-01 |diff| 8.3e-17; E3 (xnn) = +4.5631e-03 Eh = 2.7 % of |E2|
C60 zero : E2 s-dftd3 -7.225885466028e-02 xnn -7.225885466028e-02 |diff| 4.2e-17; E3 (xnn) = +4.5631e-03 Eh = 6.3 % of |E2|
--- BJ (rational) ---
system N E [Eh] |dE| [Eh] |dgrad| |dvirial|
NaCl rocksalt 2 -1.602844766437e-02 1.4e-17 1.9e-18 5.6e-16
Si diamond 2 -2.370652536860e-02 1.6e-16 1.9e-18 6.6e-16
Si sheared cell 2 -2.292151017203e-02 1.4e-16 8.7e-17 8.6e-16
graphite 4 -2.104076546597e-02 1.5e-16 2.1e-18 2.0e-15
water box (9 atoms) 9 -3.527900647406e-03 9.5e-18 2.7e-19 5.7e-17
--- zero ---
system N E [Eh] |dE| [Eh] |dgrad| |dvirial|
NaCl rocksalt 2 -1.599866534278e-02 1.3e-16 7.4e-19 8.3e-16
Si diamond 2 -1.093548871998e-02 2.2e-16 1.3e-18 5.8e-16
Si sheared cell 2 -1.084858974641e-02 6.8e-17 4.2e-17 3.1e-16
graphite 4 -1.276917484344e-02 1.3e-16 1.6e-18 2.2e-15
water box (9 atoms) 9 -3.429606773670e-03 2.2e-18 1.1e-18 6.8e-17
Block 4: Heavy elements, matching cutoffs, switching windows#
The reference table in xnn is the reference code’s, including the simple-dftd3 1.1.0 references
for Fr–Lr (Grimme’s original 2010 tables end at Pu with fewer references; xnn keeps
them too as references="2010", the PhysNet/BAMBOO default); UF₆ probes it. Both
codes accept shorter real-space cutoffs and agree with matching values. xnn’s quintic
switching windows (switch_width_pair, switch_width_triple) are a deliberate
extension, off by default, that keeps energy and forces continuous under a finite
cutoff in MD.
damping, param, opts = VARIANTS["BJ (rational)"]
uf6 = Atoms("UF6", positions=[[0, 0, 0], [2, 0, 0], [-2, 0, 0], [0, 2, 0], [0, -2, 0], [0, 0, 2], [0, 0, -2]])
pbh4 = Atoms("PbH4PbH4", positions=np.concatenate([molecule("SiH4").positions, molecule("SiH4").positions + [4.0, 0, 0]]))
report({"UF6 (Z = 92)": uf6, "PbH4 dimer (Z = 82)": pbh4}, "BJ (rational)")
cluster = molecule("CH3CH2OH") + molecule("CH3CH2OH"); cluster.positions[9:] += [4.0, 0.5, 0.3]
ref = reference(cluster, param, cutoffs=dict(disp2=12.0, disp3=9.0, cn=10.0))
mine = xnn_d3(cluster, damping="bj", s9=1.0, cutoff_pair=12 * BOHR, cutoff_triple=9 * BOHR, cutoff_cn=10 * BOHR)
print(f"\ncutoffs 12/9/10 bohr: dftd3 {float(ref['energy']):.12e} xnn {mine['energy_au']:.12e} |diff| {abs(mine['energy_au'] - float(ref['energy'])):.1e} Eh")

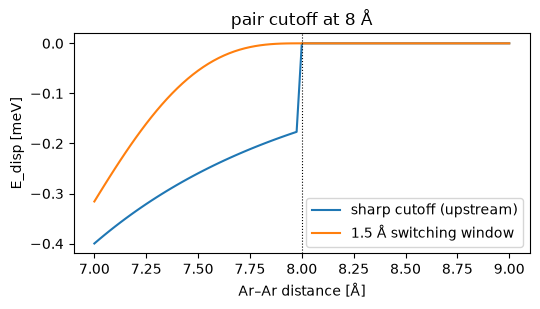

d = np.linspace(7.0, 9.0, 81)
sharp = D3Dispersion(cutoff_pair=8.0, cutoff_cn=8.0, cutoff_triple=8.0)
smooth = D3Dispersion(cutoff_pair=8.0, switch_width_pair=1.5, cutoff_cn=8.0, cutoff_triple=8.0)
E = {m: [float(xnn_d3(Atoms("Ar2", positions=[[0, 0, 0], [x, 0, 0]]), model=mod)["energy"]) * 1e3 for x in d]
for m, mod in [("sharp cutoff (upstream)", sharp), ("1.5 Å switching window", smooth)]}
plt.figure(figsize=(5.5, 3.2))
for k, v in E.items(): plt.plot(d, v, label=k)
plt.axvline(8.0, color="k", ls=":", lw=0.8); plt.xlabel("Ar–Ar distance [Å]"); plt.ylabel("E_disp [meV]"); plt.legend(); plt.title("pair cutoff at 8 Å"); plt.tight_layout(); plt.show()
--- BJ (rational) ---
system N E [Eh] |dE| [Eh] |dgrad| |dvirial|
UF6 (Z = 92) 7 -4.181076237797e-03 8.7e-19 4.1e-20 nan
PbH4 dimer (Z = 82) 10 -6.511533839911e-03 4.3e-18 1.1e-19 nan
cutoffs 12/9/10 bohr: dftd3 -9.919164262520e-03 xnn -9.919164262520e-03 |diff| 1.7e-18 Eh
Block 5: One implementation, every channel#
The same DFTD3 module serves the batched AtomicGraph path (training), the scripted
whole-system and pair-style ABIs (TorchScriptPotential, LAMMPS) and the ASE
calculator; and it wraps a short-range model without touching that model’s own
neighborhood.
from xnn.common.config import from_dict
from xnn.common.data import build_neighbor_list
from xnn.common.deploy import TorchScriptPotential, XNNCalculator
from xnn.common.models import build_model
atoms = molecule("C6H6")
d3 = D3Dispersion(s9=1.0, cutoff_pair=12.0, cutoff_triple=9.0, cutoff_cn=10.0)
eager = xnn_d3(atoms, model=d3)
scripted = torch.jit.script(TorchScriptPotential(d3, d3.cutoff).eval())
ts = scripted(torch.tensor(atoms.positions), torch.tensor(atoms.numbers))
ei, cs = build_neighbor_list(torch.tensor(atoms.positions), d3.cutoff)
ts_pair = scripted.forward_lammps(torch.tensor(atoms.positions), ei, cs, torch.tensor(atoms.numbers), torch.zeros(3, 3))
atoms.calc = XNNCalculator(ForceStressOutput(d3), cutoff=d3.cutoff)
print(f"eager {float(eager['energy']):.15f} eV")
print(f"TorchScript {float(ts['energy']):.15f} eV |dF| = {float((ts['forces'] - eager['forces']).abs().max()):.1e}")
print(f"pair-style ABI {float(ts_pair['energy']):.15f} eV")
print(f"ASE calculator {atoms.get_potential_energy():.15f} eV")
graphs = [structure_to_graph({"pos": molecule(n).positions, "atomic_numbers": molecule(n).numbers}, d3.cutoff) for n in ("H2O", "CH4", "C6H6")]
print("batch vs single |dE| =", float((d3(collate(graphs))["energy"] - torch.stack([d3(g)["energy"][0] for g in graphs])).abs().max()))
cfg = from_dict({"model": {"name": "mace", "cutoff": 4.5, "n_interactions": 1, "n_rbf": 6, "n_features": 8,
"extra": {"species": [1, 6], "l_max": 2,
"dispersion": {"name": "d3", "s9": 1.0, "cutoff_pair": 12.0, "cutoff_triple": 9.0, "cutoff_cn": 10.0}}}})
torch.manual_seed(0)
wrapped = build_model(cfg.model)
out = wrapped(structure_to_graph({"pos": atoms.positions, "atomic_numbers": atoms.numbers}, wrapped.cutoff))
core_only = wrapped.model(structure_to_graph({"pos": atoms.positions, "atomic_numbers": atoms.numbers}, 4.5))
print(f"MACE+D3: cutoff {wrapped.cutoff} Å, E = E_sr + E_disp: {float(out['energy']):.6f} = {float(core_only['energy']):.6f} + {float(out['energy_disp']):.6f} (|E_sr - MACE alone| = {abs(float(out['energy_sr']) - float(core_only['energy'])):.1e})")
eager -0.254400020697171 eV
TorchScript -0.254400020697171 eV |dF| = 0.0e+00
pair-style ABI -0.254400020697171 eV
ASE calculator -0.254400020697171 eV
batch vs single |dE| = 0.0
MACE+D3: cutoff 12.0 Å, E = E_sr + E_disp: 6.322566 = 6.576966 + -0.254400 (|E_sr - MACE alone| = 0.0e+00)
Summary#
block |
quantity |
xnn vs |
|---|---|---|
1 |
reference C6 and CN interpolation |
reproduces table II / fig 5 of the 2010 paper |
2 |
two-body + ATM energies and gradients, four damping functions, up to C60 |
~1e-17 Eh, ~1e-17 Eh/bohr |
3 |
periodic energies, gradients, virials (BJ and zero) |
~1e-17 |
4 |
actinide references, matching shorter cutoffs |
~1e-17 Eh |
5 |
eager / TorchScript / pair-style / ASE / batch |
identical |
