BAMBOO charges, energy decomposition, and deployment

A quick tour of what BAMBOO predicts beyond the energy: per-atom partial charges (conserved to the total charge), the energy split into the semi-local NN term and the charge-equilibrium electrostatic term, the molecular dipole, and how to run it as an ASE calculator. No training; this is about the model’s outputs and symmetries.

0. Build a BAMBOO

import logging, warnings
logging.disable(logging.WARNING); warnings.filterwarnings("ignore")
import numpy as np, torch
torch.set_default_dtype(torch.float64)
import xnn
from xnn.common.config import from_dict
from xnn.common.data import structure_to_graph
from xnn.common.models import build_model, ForceStressOutput

cfg = from_dict({"model": {"name": "bamboo", "cutoff": 5.0, "n_features": 64,
    "n_rbf": 32, "n_interactions": 3, "extra": {"num_heads": 16}}})
model = build_model(cfg.model)
print(model.__class__.__name__, "|", sum(p.numel() for p in model.parameters()),
      "params |", model.node_feature_dim, "invariant features")

BAMBOO | 103620 params | 64 invariant features

1. Outputs on a small molecule

A single water-like cluster. BAMBOO returns the per-structure energy, its energy_nn / energy_elec components, per-atom charges, the dipole, and the invariant node_features (consumed e.g. by the LES wrapper).

rng = np.random.default_rng(0)
s = {"pos": rng.uniform(0, 3, (6, 3)), "atomic_numbers": [8, 1, 1, 6, 7, 9]}
g = structure_to_graph(s, 5.0)
out = model(g)
for k, v in out.items():
    print(f"{k:14s} shape {tuple(v.shape)}")
print("\nenergy == energy_nn + energy_elec :",
      torch.allclose(out["energy"], out["energy_nn"] + out["energy_elec"]))
print("energy == sum(node_energy)        :",
      torch.allclose(out["energy"], out["node_energy"].sum()))

node_energy    shape (6,)
energy         shape (1,)
node_features  shape (6, 64)
charges        shape (6,)
dipole         shape (1, 3)
energy_nn      shape (1,)
energy_elec    shape (1,)

energy == energy_nn + energy_elec : True
energy == sum(node_energy)        : True

2. Charge conservation: neutral and charged

BAMBOO squashes the raw charge to [-charge_ub, charge_ub] and then shifts every atom so the total exactly matches the requested charge (0 by default, or a total_charge attribute on the graph).

print("neutral total charge:", float(model(g)["charges"].sum()))
g.total_charge = torch.tensor([-1.0])   # e.g. an anionic cluster
print("anion total charge  :", float(model(g)["charges"].sum()))

neutral total charge: 1.3877787807814457e-17
anion total charge  : -1.0

3. Symmetries: energy invariant, forces equivariant, dipole invariant in magnitude

fs = ForceStressOutput(model)
R, _ = np.linalg.qr(rng.standard_normal((3, 3)))
if np.linalg.det(R) < 0: R[:, 0] *= -1
o1 = fs(structure_to_graph(s, 5.0))
s2 = {"pos": s["pos"] @ R.T + 4.0, "atomic_numbers": s["atomic_numbers"]}
o2 = fs(structure_to_graph(s2, 5.0))
print("dE (rot+trans)       :", float((o1["energy"] - o2["energy"]).abs().max()))
print("dF (rotate forces)   :", float(np.abs(o1["forces"].detach().numpy() @ R.T
                                             - o2["forces"].detach().numpy()).max()))
print("d|dipole|            :", float((o1["dipole"].norm() - o2["dipole"].norm()).abs()))

dE (rot+trans)       : 1.1102230246251565e-16
dF (rotate forces)   : 9.71445146547012e-17
d|dipole|            : 1.6653345369377348e-15

4. The electrostatic term is long-range

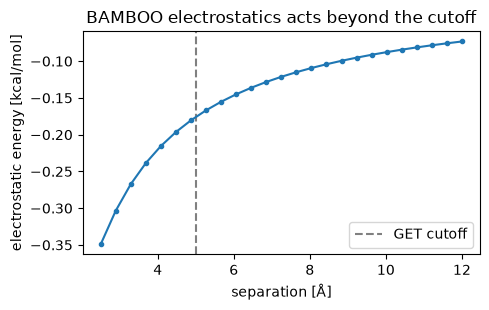

Unlike the 5 Å semi-local GET, energy_elec sums a damped Coulomb over all pairs. We slide two fluoride-like atoms apart (freezing the predicted charges) and watch the electrostatic energy follow the expected ~ q_i q_j / r tail well beyond the cutoff.

m = model
seps = np.linspace(2.5, 12.0, 25)
e_elec = []
for d in seps:
    pair = {"pos": np.array([[0, 0, 0], [d, 0, 0]]), "atomic_numbers": [9, 3]}  # F, Li
    gp = structure_to_graph(pair, 5.0)
    e_elec.append(float(m(gp)["energy_elec"][0]))
import matplotlib.pyplot as plt
plt.figure(figsize=(5, 3.2))
plt.axvline(5.0, ls="--", c="gray", label="GET cutoff")
plt.plot(seps, e_elec, "o-", ms=3)
plt.xlabel("separation [Å]"); plt.ylabel("electrostatic energy [kcal/mol]")
plt.title("BAMBOO electrostatics acts beyond the cutoff"); plt.legend()
plt.tight_layout(); plt.savefig("bamboo_electrostatic_tail.png", dpi=110); plt.show()

5. Deploy as an ASE calculator

XNNCalculator wraps any xnn model for ASE (energies, forces, and, for periodic cells, stress). BAMBOO works in kcal/mol and Å.

from ase import Atoms
from xnn.common.deploy import XNNCalculator

atoms = Atoms("OH2", positions=[[0, 0, 0], [0.96, 0, 0], [-0.24, 0.93, 0]])
atoms.calc = XNNCalculator(ForceStressOutput(model), cutoff=5.0)
print("energy [kcal/mol]:", round(atoms.get_potential_energy(), 4))
print("forces shape     :", atoms.get_forces().shape)

energy [kcal/mol]: -0.3304
forces shape     : (3, 3)

Summary

BAMBOO is a single model that predicts a physically-decomposed energy (energy_nn + energy_elec), conserved per-atom partial charges, and the molecular dipole, with correct E(3) symmetries and a genuinely long-range electrostatic term, all through the standard xnn AtomicGraph / ForceStressOutput / XNNCalculator interfaces.
