Training & testing PhysNet on Argon MD data: xnn vs the original PhysNet, step by step#
This notebook runs a complete end-to-end pipeline on a realistic Argon
dataset, twice, once with the xnn PhysNet (PyTorch) and once with the
original TF1 PhysNet, and compares the two at every stage: data →
graphs, model build, same-function weight transplant, training (same data /
loss / optimiser / schedule / split), and held-out test metrics. Same protocol
as the MACE / NequIP / Allegro / CACE companions.
Notebook
../../fidelity_checks/physnet_verification.ipynbproves the two are the same function to float64 machine precision; here we confirm it on the actual data and compare full training pipelines. Everything runs in float32 on the CPU (the reference TF1 code path); the original consumes the same periodic edge lists through itsidx_i/idx_j/offsetsplaceholders; its own data pipeline (DataContainer) handles molecular.npzdatasets only.
0. Setup: TF1 compatibility mode, float32, one process for both codes#
# silence the expected warnings / TF chatter
import logging, os, warnings
os.environ["TF_CPP_MIN_LOG_LEVEL"] = "3"
logging.disable(logging.WARNING)
warnings.filterwarnings("ignore")
import subprocess, sys, tempfile
import numpy as np
# ---- the original TF1 PhysNet (cloned on demand) ----
UPSTREAM = os.environ.get("PHYSNET_UPSTREAM_PATH",
os.path.join(tempfile.gettempdir(), "physnet-upstream"))
if not os.path.isdir(UPSTREAM):
subprocess.run(["git", "clone", "--depth", "1",
"https://github.com/MMunibas/PhysNet", UPSTREAM], check=True)
import tensorflow.compat.v1 as tf
tf.disable_eager_execution()
tf.get_logger().setLevel("ERROR")
sys.modules["tensorflow"] = tf # upstream modules do `import tensorflow as tf`
# upstream applies dropout with keep_prob = 1.0 (identity); its float32
# placeholder trips TF2's dtype check in float64 graphs
tf.nn.dropout = lambda x, keep_prob=None, **kw: x
sys.path.insert(0, UPSTREAM)
import neural_network.NeuralNetwork as _nnmod
from neural_network.NeuralNetwork import NeuralNetwork
import time
import torch
import matplotlib.pyplot as plt
import ase.io
torch.set_default_dtype(torch.float32)
torch.manual_seed(0)
import xnn
DATA = "../../../datasets/argon_md" # shared with all example series
print("xnn:", xnn.__version__, "| tensorflow:", tf.__version__, "| torch:", torch.__version__)
xnn: 0.1.0 | tensorflow: 2.21.0 | torch: 2.12.1+cpu
1. Load the data and the reference energy \(E_0\)#
\(E_0\) goes into PhysNet’s per-element Eshift table on both sides (upstream
initializes it by dataset regression; xnn loads it via atomic_energies).
from xnn.common.data import AtomicDataset, load_dataset
SR_CUT, LR_CUT, SPECIES = 6.0, 9.0, [18]
E0 = {18: 0.0} # argon isolated-atom reference energy
train_structs = load_dataset("argon_md", split="train")
test_structs = load_dataset("argon_md", split="test")
def with_edges(structs, cutoff):
ds = AtomicDataset(structs, cutoff)
keep = [i for i in range(len(structs)) if ds[i].num_edges > 0]
return [structs[i] for i in keep], len(structs) - len(keep)
train_structs, n_tr = with_edges(train_structs, LR_CUT)
test_structs, n_te = with_edges(test_structs, LR_CUT)
print(f"train {len(train_structs)} / test {len(test_structs)} configs "
f"(dropped {n_tr}/{n_te} edgeless) | E0: {E0}")
train 197 / test 48 configs (dropped 3/2 edgeless) | E0: {18: 0.0}
3. Build both models with identical hyper-parameters#
A small-but-real PhysNet (CPU-friendly): \(F=64\), \(K=32\), 3 modules, residual
depths 2/3/1, electrostatics + D3 on, lr_cut = 9 Å.
from xnn.common.config import from_dict
from xnn.common.models import build_model, ForceStressOutput
F_DIM, K, NB, NRA, NRI, NRO = 64, 32, 3, 2, 3, 1
EW, FW, LR, BS, EPOCHS = 1.0, 100.0, 1e-3, 10, 40
core = from_dict({
"model": {"name": "physnet", "cutoff": SR_CUT, "n_features": F_DIM,
"n_rbf": K, "n_interactions": NB,
"lr_cutoff": LR_CUT, "num_residual_atomic": NRA,
"num_residual_interaction": NRI, "num_residual_output": NRO,
"species": SPECIES, "atomic_energies": [E0[18]]},
"data": {"batch_size": BS},
"optim": {"lr": LR, "epochs": EPOCHS, "energy_weight": EW, "force_weight": FW,
"scheduler": "plateau"},
"device": "cpu", "seed": 0, "output_dir": "runs/argon_xnn",
})
torch.manual_seed(0)
xnn_model = ForceStressOutput(build_model(core.model))
def build_tf_graph():
"""The original PhysNet as a TF1 training graph fed by placeholders."""
nn = NeuralNetwork(F=F_DIM, K=K, sr_cut=SR_CUT, lr_cut=LR_CUT, num_blocks=NB,
num_residual_atomic=NRA, num_residual_interaction=NRI,
num_residual_output=NRO, use_electrostatic=True,
use_dispersion=True, Eshift=E0[18], scope="nn", seed=0)
ph = {"Z": tf.placeholder(tf.int32, [None]), "R": tf.placeholder(tf.float32, [None, 3]),
"idx_i": tf.placeholder(tf.int32, [None]), "idx_j": tf.placeholder(tf.int32, [None]),
"offsets": tf.placeholder(tf.float32, [None, 3]),
"batch_seg": tf.placeholder(tf.int32, [None]),
"E_ref": tf.placeholder(tf.float32, [None]), "F_ref": tf.placeholder(tf.float32, [None, 3]),
"lr": tf.placeholder(tf.float32, [])}
Ea, Qa, Dij, _ = nn.atomic_properties(ph["Z"], ph["R"], ph["idx_i"], ph["idx_j"],
offsets=ph["offsets"])
E = nn.energy_from_atomic_properties(Ea, Qa, Dij, ph["Z"], ph["idx_i"], ph["idx_j"],
batch_seg=ph["batch_seg"])
E = tf.reshape(E, [-1])
Fp = -tf.gradients(tf.reduce_sum(E), ph["R"])[0]
n_at = tf.segment_sum(tf.ones_like(ph["batch_seg"], tf.float32), ph["batch_seg"])
loss = (EW * tf.reduce_mean(((E - ph["E_ref"]) / n_at) ** 2)
+ FW * tf.reduce_mean((Fp - ph["F_ref"]) ** 2))
train_op = tf.train.AdamOptimizer(ph["lr"]).minimize(loss)
return nn, ph, E, Fp, loss, train_op
tf.reset_default_graph()
tf_nn, ph, E_op, F_op, loss_op, train_op = build_tf_graph()
sess = tf.Session()
sess.run(tf.global_variables_initializer())
p_x = sum(p.numel() for p in xnn_model.parameters())
p_t = int(sum(np.prod(v.shape.as_list()) for v in tf.trainable_variables()))
print(f"parameters: xnn {p_x} | original {p_t}")
def make_feed(frames, lr=LR):
Z = np.concatenate([f["Z"] for f in frames])
R = np.concatenate([f["R"] for f in frames])
off_at, off_ed = 0, []
ii, jj, offs, seg = [], [], [], []
for k, f in enumerate(frames):
ii.append(f["idx_i"] + off_at); jj.append(f["idx_j"] + off_at)
offs.append(f["offsets"]); seg.append(np.full(len(f["Z"]), k))
off_at += len(f["Z"])
return {ph["Z"]: Z, ph["R"]: R, ph["idx_i"]: np.concatenate(ii),
ph["idx_j"]: np.concatenate(jj), ph["offsets"]: np.concatenate(offs),
ph["batch_seg"]: np.concatenate(seg),
ph["E_ref"]: np.array([f["E"] for f in frames]),
ph["F_ref"]: np.concatenate([f["F"] for f in frames]), ph["lr"]: lr}
parameters: xnn 200448 | original 200448
3b. Are they the same function? Weight transplant on the Argon data#
Copy every TF variable into the xnn model and compare on real periodic Argon test configurations (float32 round-off; ~1e-15 in float64, notebook 01).
def transplant_tf_to_torch(x, vals, num_blocks, scope="nn"):
"""Copy every variable of the original TF PhysNet into the xnn PhysNet."""
import torch
def g(name): return torch.tensor(np.asarray(vals[f"{scope}/{name}:0"]))
with torch.no_grad():
x.embeddings.copy_(g("embeddings"))
x.rbf_layer.centers.copy_(g("rbf_layer/centers"))
x.rbf_layer.widths.copy_(g("rbf_layer/widths"))
x.Eshift.copy_(g("Eshift")); x.Escale.copy_(g("Escale"))
x.Qshift.copy_(g("Qshift")); x.Qscale.copy_(g("Qscale"))
x._s6.copy_(g("s6")); x._s8.copy_(g("s8"))
x._a1.copy_(g("a1")); x._a2.copy_(g("a2"))
def cd(dst, sc, bias=True):
dst.weight.copy_(g(f"{sc}/W"))
if bias: dst.bias.copy_(g(f"{sc}/b"))
def cr(dst, sc):
cd(dst.dense, f"{sc}/dense"); cd(dst.residual, f"{sc}/residual")
for b in range(num_blocks):
ib, sc = x.interaction_blocks[b], f"interaction_block{b}"
il = ib.interaction
cd(il.k2f, f"{sc}/interaction_layer/k2f", bias=False)
cd(il.dense_i, f"{sc}/interaction_layer/dense_i")
cd(il.dense_j, f"{sc}/interaction_layer/dense_j")
for k, r in enumerate(il.residuals):
cr(r, f"{sc}/interaction_layer/residual_layer{k}")
cd(il.dense, f"{sc}/interaction_layer/dense")
il.u.copy_(g(f"{sc}/interaction_layer/u"))
for k, r in enumerate(ib.residuals):
cr(r, f"{sc}/residual_layer{k}")
ob = x.output_blocks[b]
for k, r in enumerate(ob.residuals):
cr(r, f"output_block{b}/residual_layer{k}")
ob.dense.weight.copy_(g(f"output_block{b}/dense_layer/W"))
vals = {v.name: sess.run(v) for v in tf.global_variables()}
transplant_tf_to_torch(xnn_model.model, vals, NB)
dE, dF = [], []
for k in range(8):
out = xnn_model(xnn_test[k])
E_t, F_t = sess.run([E_op, F_op], make_feed([tf_test[k]]))
dE.append(abs(float(out["energy"]) - float(E_t[0])))
dF.append(np.abs(out["forces"].detach().numpy() - F_t).max())
print("transplanted models on Argon test configs (float32):")
print(f" max |E_xnn - E_tf| = {max(dE):.2e} eV | max |F_xnn - F_tf| = {max(dF):.2e} eV/A")
# re-initialize the xnn model freshly for the fair training comparison
torch.manual_seed(0)
xnn_model = ForceStressOutput(build_model(core.model))
transplanted models on Argon test configs (float32):
max |E_xnn - E_tf| = 3.05e-05 eV | max |F_xnn - F_tf| = 2.87e-06 eV/A
4a. Train the xnn model (xnn.train.Trainer)#
from torch.utils.data import Subset
from xnn.common.train import Trainer
trainer = Trainer(core, Subset(xnn_train, train_idx), Subset(xnn_train, val_idx))
trainer.model = xnn_model.to(trainer.device)
trainer.opt = torch.optim.Adam(trainer.model.parameters(), lr=LR)
trainer.sched = torch.optim.lr_scheduler.ReduceLROnPlateau(trainer.opt, patience=10)
hist_x = {"train": [], "val": []}
def _rec(epoch, tr, va):
hist_x["train"].append(tr.get("loss")); hist_x["val"].append(va.get("loss"))
trainer._log = _rec
t0 = time.time(); trainer.fit(); t_x = time.time() - t0
print(f"xnn: {EPOCHS} epochs in {t_x:.1f} s | "
f"final train {hist_x['train'][-1]:.4e} val {hist_x['val'][-1]:.4e}")
xnn: 40 epochs in 506.0 s | final train 8.6197e-04 val 4.3481e-04
4b. Train the original PhysNet: same data, loss, optimiser, schedule#
A transparent TF1 loop (the packaged route is upstream train.py); the
plateau schedule mirrors torch.optim.lr_scheduler.ReduceLROnPlateau’s
defaults.
rng_ep = np.random.default_rng(0)
hist_t = {"train": [], "val": []}
lr_now, best_val, bad = LR, np.inf, 0
t0 = time.time()
for epoch in range(EPOCHS):
order = rng_ep.permutation(len(train_idx))
tl = 0.0; nb = 0
for s in range(0, len(order), BS):
frames = [tf_train[train_idx[i]] for i in order[s:s + BS]]
_, l = sess.run([train_op, loss_op], make_feed(frames, lr=lr_now))
tl += float(l); nb += 1
vl = 0.0; nv = 0
for s in range(0, len(val_idx), BS):
frames = [tf_train[i] for i in val_idx[s:s + BS]]
vl += float(sess.run(loss_op, make_feed(frames))); nv += 1
tl /= nb; vl /= nv
hist_t["train"].append(tl); hist_t["val"].append(vl)
# ReduceLROnPlateau(factor=0.1, patience=10) in five lines
if vl < best_val: best_val, bad = vl, 0
else:
bad += 1
if bad > 10: lr_now, bad = lr_now * 0.1, 0
t_t = time.time() - t0
print(f"original: {EPOCHS} epochs in {t_t:.1f} s | "
f"final train {hist_t['train'][-1]:.4e} val {hist_t['val'][-1]:.4e}")
original: 40 epochs in 497.7 s | final train 8.0836e-04 val 4.9075e-04

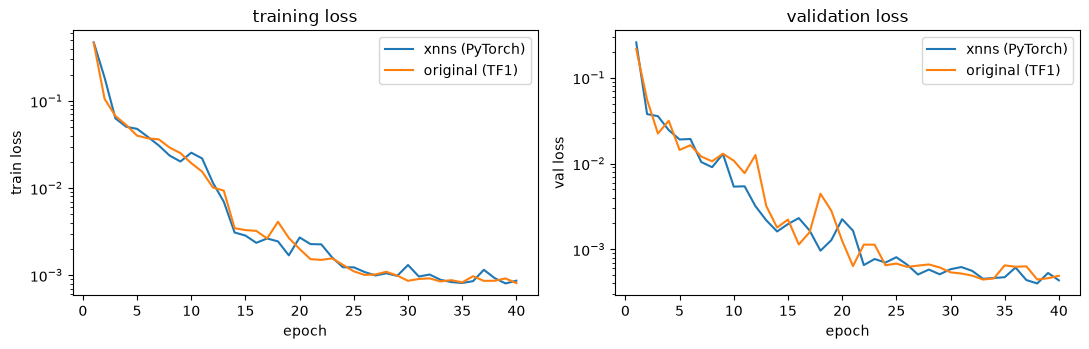

Training-loss curves: both models#
fig, ax = plt.subplots(1, 2, figsize=(11, 3.6))
ep = range(1, EPOCHS + 1)
for a, key, ttl in [(ax[0], "train", "training loss"), (ax[1], "val", "validation loss")]:
a.plot(ep, hist_x[key], label="xnn (PyTorch)")
a.plot(ep, hist_t[key], label="original (TF1)")
a.set_yscale("log"); a.set_xlabel("epoch"); a.set_ylabel(key + " loss")
a.legend(); a.set_title(ttl)
plt.tight_layout(); plt.savefig("argon_loss_curves.png", dpi=120); plt.show()
print(f"training time (CPU): xnn {t_x:.0f}s original TF1 {t_t:.0f}s")
training time (CPU): xnn 506s original TF1 498s

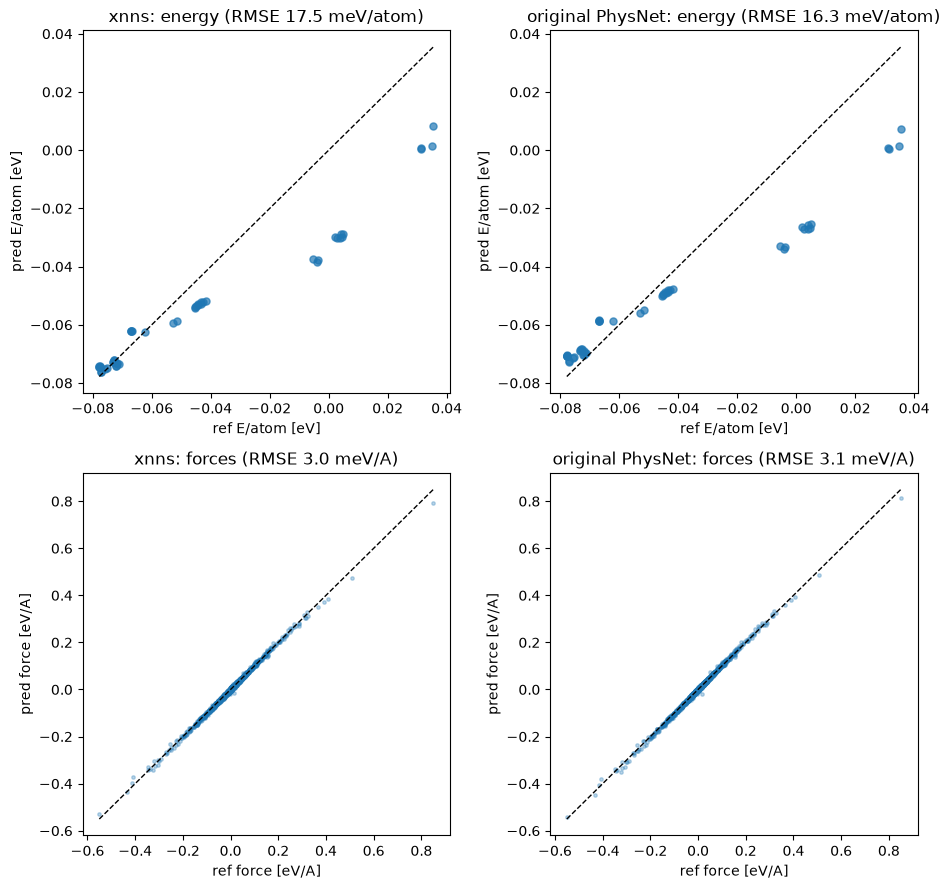

5. Evaluate both trained models on the held-out test set#
def eval_xnn(model):
model.eval(); Ep, Er, na, Fp, Fr = [], [], [], [], []
for s, i in zip(test_structs, range(len(xnn_test))):
out = model(xnn_test[i])
Ep.append(float(out["energy"].detach())); Er.append(s["energy"]); na.append(len(s["atomic_numbers"]))
Fp.append(out["forces"].detach().numpy()); Fr.append(s["forces"])
return map(np.array, (Ep, Er, na)), np.concatenate(Fp), np.concatenate(Fr)
def eval_tf():
Ep, Er, na, Fp, Fr = [], [], [], [], []
for s, f in zip(test_structs, tf_test):
E_t, F_t = sess.run([E_op, F_op], make_feed([f]))
Ep.append(float(E_t[0])); Er.append(s["energy"]); na.append(len(s["atomic_numbers"]))
Fp.append(F_t); Fr.append(s["forces"])
return map(np.array, (Ep, Er, na)), np.concatenate(Fp), np.concatenate(Fr)
def metrics(EpErNa, Fp, Fr):
Ep, Er, na = EpErNa
e = (Ep - Er) / na * 1000.0; f = (Fp - Fr) * 1000.0
return dict(e_rmse=np.sqrt((e**2).mean()), e_mae=np.abs(e).mean(),
f_rmse=np.sqrt((f**2).mean()), f_mae=np.abs(f).mean(),
Ep=Ep/na, Er=Er/na, Fp=Fp, Fr=Fr)
res_x = metrics(*eval_xnn(trainer.model))
res_t = metrics(*eval_tf())
print(f"{'metric':<24}{'xnn':>10}{'original':>14}")
print("-" * 48)
for k, lbl in [("e_rmse", "energy RMSE [meV/atom]"), ("e_mae", "energy MAE [meV/atom]"),
("f_rmse", "force RMSE [meV/A]"), ("f_mae", "force MAE [meV/A]")]:
print(f"{lbl:<24}{res_x[k]:>10.2f}{res_t[k]:>14.2f}")
metric xnn original
------------------------------------------------
energy RMSE [meV/atom] 17.55 16.35
energy MAE [meV/atom] 11.91 11.81
force RMSE [meV/A] 3.03 3.14
force MAE [meV/A] 1.81 1.96
Side-by-side parity plots#
fig, ax = plt.subplots(2, 2, figsize=(9.5, 9))
rng = np.random.default_rng(0)
idx = rng.choice(res_x["Fr"].size, size=min(4000, res_x["Fr"].size), replace=False)
for col, (res, name) in enumerate([(res_x, "xnn"), (res_t, "original PhysNet")]):
a0 = ax[0, col]
lim = [min(res["Er"].min(), res["Ep"].min()), max(res["Er"].max(), res["Ep"].max())]
a0.plot(lim, lim, "k--", lw=1); a0.scatter(res["Er"], res["Ep"], s=26, alpha=0.7)
a0.set_xlabel("ref E/atom [eV]"); a0.set_ylabel("pred E/atom [eV]")
a0.set_title(f"{name}: energy (RMSE {res['e_rmse']:.1f} meV/atom)")
a1 = ax[1, col]
fr, fp = res["Fr"].ravel()[idx], res["Fp"].ravel()[idx]
lim = [min(fr.min(), fp.min()), max(fr.max(), fp.max())]
a1.plot(lim, lim, "k--", lw=1); a1.scatter(fr, fp, s=6, alpha=0.3)
a1.set_xlabel("ref force [eV/A]"); a1.set_ylabel("pred force [eV/A]")
a1.set_title(f"{name}: forces (RMSE {res['f_rmse']:.1f} meV/A)")
plt.tight_layout(); plt.savefig("argon_parity_xnn_vs_physnet.png", dpi=120); plt.show()
6. xnn ASE calculator (deployment)#
from ase import Atoms
from xnn.common.deploy import XNNCalculator
s = test_structs[0]
atoms = Atoms(numbers=s["atomic_numbers"], positions=s["pos"], cell=s["cell"], pbc=True)
atoms.calc = XNNCalculator(trainer.model, cutoff=trainer.model.model.cutoff)
print(f"ASE single point: E = {atoms.get_potential_energy():.4f} eV | "
f"max|F| = {np.abs(atoms.get_forces()).max():.4f} eV/A")
print(f"reference : E = {s['energy']:.4f} eV")
sess.close()
ASE single point: E = -29.7783 eV | max|F| = 0.0866 eV/A
reference : E = -31.0395 eV
Summary: every stage compared#
stage |
result |
|---|---|
Data → graphs |
one xnn neighbour list feeds both codes (the original’s own pipeline is molecular- |
Model build |
identical architecture and parameter count |
Same function? |
weight transplant → identical E and F on periodic Argon (float32 round-off) |
Training |
same data / loss / Adam / plateau schedule → comparable loss curves |
Test accuracy |
energy and force RMSE/MAE agree between the two implementations |
The xnn PhysNet is the original PhysNet in pure PyTorch; residual metric
differences come from independent initialisation and shuffling. The companion
notebook physnet_argon_density_md.ipynb takes it to molecular dynamics.
