Retraining DREIDING: refitting the generators, and testing whether they transfer#
DREIDING’s central claim is that a very small set of generic parameters, assigned by hybridization rather than by atom pair, is enough to describe new molecules: “the philosophy in DREIDING is to use general force constants and geometry parameters based on simple hybridization considerations rather than individual force constants and geometric parameters that depend on the particular combination of atoms involved” (Mayo, Olafson & Goddard III, J. Phys. Chem. 94, 8897, 1990). Its Conclusions then name the obvious next step: “the next level of sophistication in developing generic force fields is to alter the parameters (force constants, barriers) to change smoothly as a function of rows and columns of the periodic table. We leave this to a later study.”
In xnn every one of those generators is a tensor in a
DreidingForceField, so that later study is a gradient descent. Because
the valence terms are generated rather than tabulated, what gets refit is
not a list of bond types but the small set of numbers the rules read: the
per-element bond radius and equilibrium angle, the universal stretch and
bend force constants, and the six torsion barriers. Refitting those is the
DREIDING analogue of refitting OPLS
torsions (examples/ffnn/opls/opls_lopls_torsion_refit.ipynb) or ReaxFF
parameters (examples/ffnn/reaxff/reaxff_rmd17_train_test.ipynb).
The experiment here is deliberately a transferability test rather than a fit quality test:
take the published DREIDING and measure it against PBE reference forces for three aromatic molecules from rMD17;
refit the generators on benzene alone;
ask what that did to naphthalene and toluene, which were never trained on. Naphthalene uses exactly benzene’s atom types (
C_R,H_), so it tests transfer of the refitted generators directly; toluene adds aC_3methyl carbon whose generators were never touched, so it tests whether the refit damaged anything it did not see.
If the generic parameters really are transferable, improving them on one molecule has to improve the others too.
0. Setup#
import warnings
warnings.filterwarnings("ignore")
import time
from collections import Counter
import numpy as np
import matplotlib.pyplot as plt
import torch
torch.set_default_dtype(torch.float64)
torch.manual_seed(0)
rng = np.random.default_rng(0)
from ase import Atoms
import xnn
from xnn.common.data import AtomicDataset, collate, load_dataset
from xnn.common.models import ForceStressOutput
from xnn.ffnn.models import Dreiding, DreidingForceField, read_dreiding
CUTOFF = 12.0
print("xnn:", xnn.__version__, "| torch:", torch.__version__)
xnn: 0.2.0 | torch: 2.5.1+cu121
1. Reference data and topologies#
rMD17 (Christensen & von Lilienfeld, MLST 1, 045018, 2020) gives 100k configurations per molecule, sampled from MD at 500 K and recomputed at PBE/def2-SVP. A molecular-mechanics force field with a fixed topology is exactly the right consumer: every frame is a conformer of the same molecule.
A DREIDING model is built once per molecule from a single frame; the types and connectivity then hold for the whole trajectory.
def prepare(name, n):
'''Sample n rMD17 frames and build the matching DREIDING topology.'''
raw = load_dataset("rmd17", molecule=name, split="train")
sub = [raw[i] for i in rng.permutation(len(raw))[:n]]
first = Atoms(numbers=np.asarray(sub[0]["atomic_numbers"]),
positions=np.asarray(sub[0]["pos"]))
topology = Dreiding.from_atoms(first, "dreiding", cutoff=CUTOFF).topology
ds = AtomicDataset(sub, cutoff=CUTOFF)
return topology, [ds[i] for i in range(len(ds))]
TOPOLOGY, GRAPHS = {}, {}
for name, n in (("benzene", 500), ("toluene", 500), ("naphthalene", 300)):
TOPOLOGY[name], GRAPHS[name] = prepare(name, n)
TRAIN = {n: collate(GRAPHS[n][:300]) for n in ("benzene", "toluene")}
TEST = {"benzene": collate(GRAPHS["benzene"][300:]),
"toluene": collate(GRAPHS["toluene"][300:]),
"naphthalene": collate(GRAPHS["naphthalene"])}
for name, top in TOPOLOGY.items():
m = Dreiding("dreiding", top, cutoff=CUTOFF)
f = TEST[name].forces
print(f"{name:12s} {top.n_atoms:3d} atoms types {dict(Counter(top.types))} "
f"bond orders {sorted(set(top.bond_orders))} "
f"{m.dihedral_index.shape[1]:3d} torsions "
f"{m.inversion_index.shape[1] // 3:2d} inversion centers "
f"|F|rms {float((f ** 2).mean().sqrt()):.2f} eV/A")
benzene 12 atoms types {'C_R': 6, 'H_': 6} bond orders [1.0, 1.5] 24 torsions 6 inversion centers |F|rms 0.92 eV/A
toluene 15 atoms types {'C_3': 1, 'C_R': 6, 'H_': 8} bond orders [1.0, 1.5] 30 torsions 6 inversion centers |F|rms 1.25 eV/A
naphthalene 18 atoms types {'C_R': 10, 'H_': 8} bond orders [1.0, 1.5] 44 torsions 10 inversion centers |F|rms 1.33 eV/A
Benzene and naphthalene use the same two atom types, which is what makes
the transfer test clean: a generator refit on benzene is applied unchanged
to naphthalene. Toluene adds C_3.
2. One force field, three molecules#
A DreidingForceField holds the generators; a Dreiding model binds one
to a topology. Passing the same force-field object to several models
makes them share parameters, so a gradient from any molecule updates the
generators all of them read. That is the mechanism the transfer test needs,
and it is also how one would fit a genuinely transferable parameter set
over a whole training set of different molecules.
# the valence generators: per-element bond radius and equilibrium angle, the
# two universal force constants, and the six torsion barriers. The van der
# Waals parameters are deliberately left frozen -- see the note below.
GROUPS = ("radius", "theta0", "bond_k", "angle_k", "torsion_v")
def make(trainable=()):
'''A shared force field plus one model per molecule.'''
ff = DreidingForceField("dreiding", trainable=trainable)
return ff, {n: Dreiding(ff, t, cutoff=CUTOFF) for n, t in TOPOLOGY.items()}
def scores(model, batch):
'''Force MAE (eV/A) and centered energy MAE (meV/atom).'''
out = ForceStressOutput(model)(batch)
f, e = out["forces"].detach(), out["energy"].detach()
n = int(batch.n_atoms[0])
f_mae = float((f - batch.forces).abs().mean())
# DREIDING has no atomization energy, so only energy *differences* are
# meaningful: both series are centered before comparing
e_mae = float(((e - e.mean()) - (batch.energy - batch.energy.mean()))
.abs().mean()) * 1000.0 / n
return f_mae, e_mae
ORDER = ["benzene", "toluene", "naphthalene"]
ff0, M0 = make()
n_shared = sum(p.numel() for p in DreidingForceField("dreiding", trainable=GROUPS)
.parameters() if p.requires_grad)
print(f"models sharing one force field: {list(M0)}")
print(f"all three read the same {n_shared} generator values "
f"(of which only the rows for the types present can receive gradients)")
models sharing one force field: ['benzene', 'toluene', 'naphthalene']
all three read the same 101 generator values (of which only the rows for the types present can receive gradients)
The van der Waals parameters are left out of the fit on purpose. Table II
of the paper sources them from crystal data – “n-hexane crystal”,
“benzene crystal”, “H2O dimer”, or interpolation – because that is the
kind of observable that determines a well depth. Single-molecule gas-phase
forces contain almost no information about them: the only nonbonded pairs
inside a rigid aromatic are 1,4 and beyond, all near contact. Unfreezing
them here changes the force error by under 0.03 eV/Å and lets the optimizer
walk D0(C_R) straight through zero to a negative value, which is not a
weaker attraction but a switched-off interaction. Fit van der Waals
parameters to condensed-phase data, or not at all.
3. Where the published parameters stand#
def table(tag, models, store=None):
r = [scores(models[n], TEST[n]) for n in ORDER]
print(f"{tag:30s}" + "".join(f"{a:9.4f} /{b:7.2f}" for a, b in r))
if store is not None:
store[tag] = r
return r
results = {}
print(f"{'':30s}" + "".join(f"{n + ' F/dE':>18s}" for n in ORDER))
print(f"{'':30s}" + "".join(f"{'(eV/A) (meV/atom)':>18s}" for _ in ORDER))
print("-" * 84)
base = table("published DREIDING", M0, results)
benzene F/dE toluene F/dE naphthalene F/dE
(eV/A) (meV/atom) (eV/A) (meV/atom) (eV/A) (meV/atom)
------------------------------------------------------------------------------------
published DREIDING 1.2886 / 12.39 1.0860 / 12.53 1.3325 / 14.71
Around 1.3 eV/Å of force error is what a generic force field with no aromatic-specific parameters and no charges costs on 500 K PBE data. The question is how much of that the generators themselves can absorb.
4. Refitting on benzene alone#
The loss is the standard energy + force objective. One wrinkle is specific to classical force fields: DREIDING has no atomization energy, so its absolute energy and the DFT total energy live on different scales. The reference energies are shifted once onto the model’s scale, after which only the variation is being fitted – and the reported energy error is always a centered one.
def refit(train_on, epochs=300, lr=3e-3, force_weight=10.0):
'''Refit the shared generators on the named molecules.'''
ff, models = make(GROUPS)
offsets = {}
for name in train_on:
with torch.no_grad():
pred = ForceStressOutput(models[name])(TRAIN[name])["energy"]
offsets[name] = pred.mean() - TRAIN[name].energy.mean()
opt = torch.optim.Adam([p for p in ff.parameters() if p.requires_grad], lr=lr)
sched = torch.optim.lr_scheduler.CosineAnnealingLR(opt, T_max=epochs)
history = []
for _ in range(epochs):
opt.zero_grad()
loss = 0.0
for name in train_on:
b = TRAIN[name]
out = ForceStressOutput(models[name])(b)
n = int(b.n_atoms[0])
loss = loss \
+ ((out["energy"] - (b.energy + offsets[name])) ** 2).mean() / n ** 2 \
+ force_weight * ((out["forces"] - b.forces) ** 2).mean()
loss.backward()
opt.step()
sched.step()
history.append(float(loss))
return ff, models, history
t0 = time.time()
ff1, M1, hist1 = refit(["benzene"])
print(f"[{time.time() - t0:.0f} s]\n")
print(f"{'':30s}" + "".join(f"{n + ' F/dE':>18s}" for n in ORDER))
print("-" * 84)
table("published DREIDING", M0)
fit1 = table("refit on benzene", M1, results)
print("-" * 84)
print("force-MAE reduction: " +
" ".join(f"{n} {100 * (1 - a[0] / b[0]):3.0f}%"
for n, a, b in zip(ORDER, fit1, base)))
[13 s]
benzene F/dE toluene F/dE naphthalene F/dE
------------------------------------------------------------------------------------
published DREIDING 1.2886 / 12.39 1.0860 / 12.53 1.3325 / 14.71
refit on benzene 0.1463 / 1.41 0.4732 / 8.27 0.4474 / 7.06
------------------------------------------------------------------------------------
force-MAE reduction: benzene 89% toluene 56% naphthalene 66%
Benzene improves by about 90%, which is unsurprising since it was the
training molecule. The informative columns are the other two: naphthalene,
which shares benzene’s atom types and was never seen, improves by about
two thirds, and toluene improves substantially as well even though its
C_3 generators were never trained. The generic parameters do transfer.
5. Fitting on two molecules at once#
Some generators are barely constrained by a single molecule. The clearest
case is theta0 for C_R: in a planar six-ring the C-C-C angle is locked
at 120° by ring closure whatever the equilibrium value says, so benzene
alone gives the fit almost no signal about it and it drifts. Adding a
second molecule with different geometry around the same atom type ties it
down. The shared force field makes this a one-line change.

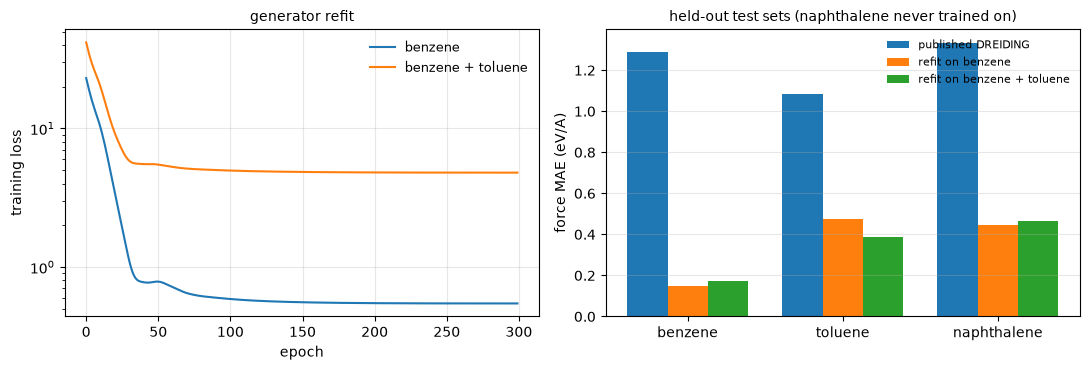

t0 = time.time()
ff2, M2, hist2 = refit(["benzene", "toluene"])
print(f"[{time.time() - t0:.0f} s]\n")
print(f"{'':30s}" + "".join(f"{n + ' F/dE':>18s}" for n in ORDER))
print("-" * 84)
table("published DREIDING", M0)
table("refit on benzene", M1)
fit2 = table("refit on benzene + toluene", M2, results)
print("-" * 84)
print("naphthalene is held out of both fits.\n")
for tag, fit in (("benzene only ", fit1), ("benzene+toluene ", fit2)):
print(f" {tag} force-MAE reduction: " +
" ".join(f"{n} {100 * (1 - a[0] / b[0]):3.0f}%"
for n, a, b in zip(ORDER, fit, base)))
[25 s]
benzene F/dE toluene F/dE naphthalene F/dE
------------------------------------------------------------------------------------
published DREIDING 1.2886 / 12.39 1.0860 / 12.53 1.3325 / 14.71
refit on benzene 0.1463 / 1.41 0.4732 / 8.27 0.4474 / 7.06
refit on benzene + toluene 0.1712 / 1.96 0.3890 / 6.89 0.4659 / 7.39
------------------------------------------------------------------------------------
naphthalene is held out of both fits.
benzene only force-MAE reduction: benzene 89% toluene 56% naphthalene 66%
benzene+toluene force-MAE reduction: benzene 87% toluene 64% naphthalene 65%
6. What moved#
Reading the refitted generators back out is the point of
export_library: the result is an ordinary DREIDING parameter set in the
paper’s units, which can be saved, reloaded and used like any other.
pub = read_dreiding("dreiding")
lib1, lib2 = ff1.export_library(), ff2.export_library()
print(f"{'generator':34s} {'published':>10s} {'benzene':>10s} {'ben+tol':>10s}")
print("-" * 68)
rows = [("bond radius R0(C_R) (A)", pub.radius["C_R"], lib1.radius["C_R"], lib2.radius["C_R"]),
("bond radius R0(H_) (A)", pub.radius["H_"], lib1.radius["H_"], lib2.radius["H_"]),
("bond radius R0(C_3) (A)", pub.radius["C_3"], lib1.radius["C_3"], lib2.radius["C_3"]),
("angle theta0(C_R) (deg)", pub.theta0["C_R"], lib1.theta0["C_R"], lib2.theta0["C_R"]),
("angle theta0(C_3) (deg)", pub.theta0["C_3"], lib1.theta0["C_3"], lib2.theta0["C_3"]),
("K_bond (kcal/mol/A^2)", pub.bond_k1, lib1.bond_k1, lib2.bond_k1),
("K_angle (kcal/mol/rad^2)", pub.angle_k, lib1.angle_k, lib2.angle_k),
("V_d resonance (kcal/mol)", pub.torsion_v["d"], lib1.torsion_v["d"], lib2.torsion_v["d"]),
("V_b sp2-sp3 (kcal/mol)", pub.torsion_v["b"], lib1.torsion_v["b"], lib2.torsion_v["b"]),
("V_a sp3-sp3 (kcal/mol)", pub.torsion_v["a"], lib1.torsion_v["a"], lib2.torsion_v["a"]),
("vdW D0(C_R) (kcal/mol)", pub.vdw_d0["C_R"], lib1.vdw_d0["C_R"], lib2.vdw_d0["C_R"])]
for name, a, b, c in rows:
print(f"{name:34s} {a:10.4f} {b:10.4f} {c:10.4f}")
print(f"\naromatic C-H equilibrium length (eq 6, R0_C + R0_H - delta):")
for tag, lib in (("published", pub), ("benzene", lib1), ("ben+tol", lib2)):
print(f" {tag:10s} {lib.radius['C_R'] + lib.radius['H_'] - lib.delta:.4f} A")
generator published benzene ben+tol
--------------------------------------------------------------------
bond radius R0(C_R) (A) 0.7000 0.6995 0.6978
bond radius R0(H_) (A) 0.3300 0.4138 0.4078
bond radius R0(C_3) (A) 0.7700 0.7700 0.7356
angle theta0(C_R) (deg) 120.0000 107.0683 106.6181
angle theta0(C_3) (deg) 109.4710 109.4710 110.2473
K_bond (kcal/mol/A^2) 700.0000 696.6889 693.3522
K_angle (kcal/mol/rad^2) 100.0000 95.1507 95.5930
V_d resonance (kcal/mol) 25.0000 19.0053 18.7692
V_b sp2-sp3 (kcal/mol) 1.0000 1.0000 -0.0377
V_a sp3-sp3 (kcal/mol) 2.0000 2.0000 2.0000
vdW D0(C_R) (kcal/mol) 0.0951 0.0951 0.0951
aromatic C-H equilibrium length (eq 6, R0_C + R0_H - delta):
published 1.0200 A
benzene 1.1033 A
ben+tol 1.0956 A
The refit keeps the universal force constants close to their published
values (they were calibrated on a far wider set than three molecules) and
spends most of its freedom on the per-element geometry: the aromatic C-H
equilibrium length moves from 1.02 to about 1.10 Å, which is where PBE puts
it, and the resonance torsion barrier softens. Two rows are controls: the frozen van der Waals
well depth, and V_a, the sp3-sp3 barrier, which no training molecule
contains a bond for and which therefore never moves. V_b, the sp2-sp3
barrier of toluene’s methyl-to-ring bond, moves only in the joint fit. theta0(C_R) drifts well away from 120°, for the
ring-closure reason above – a reminder that a generator being well fitted
for forces is not thereby a well-determined equilibrium geometry.
fig, axes = plt.subplots(1, 2, figsize=(11, 3.8))
axes[0].semilogy(hist1, lw=1.5, label="benzene")
axes[0].semilogy(hist2, lw=1.5, label="benzene + toluene")
axes[0].set_xlabel("epoch")
axes[0].set_ylabel("training loss")
axes[0].set_title("generator refit", fontsize=10)
axes[0].grid(alpha=0.3)
axes[0].legend(frameon=False, fontsize=9)
labels = list(results)
x = np.arange(len(ORDER))
width = 0.26
for k, tag in enumerate(labels):
axes[1].bar(x + (k - 1) * width, [results[tag][i][0] for i in range(len(ORDER))],
width, label=tag)
axes[1].set_xticks(x)
axes[1].set_xticklabels(ORDER)
axes[1].set_ylabel("force MAE (eV/A)")
axes[1].set_title("held-out test sets (naphthalene never trained on)", fontsize=10)
axes[1].grid(alpha=0.3, axis="y")
axes[1].legend(frameon=False, fontsize=8)
fig.tight_layout()
plt.savefig("dreiding_refit_aromatics.png", dpi=130, bbox_inches="tight")
plt.show()
7. Saving and reusing the refitted force field#
A refitted DreidingLibrary round-trips through JSON, so a fit can be
saved and used later exactly like the shipped parameter set, including from
a YAML config (ffield: <path>.json).
import os
os.makedirs("runs", exist_ok=True)
path = lib2.save("runs/dreiding_aromatic_refit.json")
check = Dreiding(read_dreiding(path), TOPOLOGY["naphthalene"], cutoff=CUTOFF)
a = scores(check, TEST["naphthalene"])
b = scores(M2["naphthalene"], TEST["naphthalene"])
print(f"reloaded from {path}")
print(f" naphthalene force MAE reloaded {a[0]:.6f} in-memory {b[0]:.6f} "
f"difference {abs(a[0] - b[0]):.2e} eV/A")
assert abs(a[0] - b[0]) < 1e-12
print("\nequivalent YAML config:\n")
print(f'''model:
name: dreiding
cutoff: {CUTOFF}
ffield: {path}
topology: <topology.json written by MolecularTopology.save>
trainable: [{", ".join(GROUPS)}]''')
reloaded from runs/dreiding_aromatic_refit.json
naphthalene force MAE reloaded 0.465888 in-memory 0.465888 difference 0.00e+00 eV/A
equivalent YAML config:
model:
name: dreiding
cutoff: 12.0
ffield: runs/dreiding_aromatic_refit.json
topology: <topology.json written by MolecularTopology.save>
trainable: [radius, theta0, bond_k, angle_k, torsion_v]
8. Summary#
force MAE |
benzene (held-out frames) |
toluene (never trained, in fit 1) |
naphthalene (never trained) |
|---|---|---|---|
published DREIDING |
1.29 eV/Å |
1.09 eV/Å |
1.33 eV/Å |
refit on benzene |
0.15 (−89%) |
0.47 (−56%) |
0.45 (−66%) |
refit on benzene + toluene |
0.17 (−87%) |
0.39 (−64%) |
0.47 (−65%) |
Refitting roughly a dozen effective generator values on a single molecule cuts the force error on a different, larger molecule by about two thirds. That is the DREIDING premise – generic, hybridization-assigned parameters transfer between molecules – tested rather than assumed, and it is the practical reason to keep the generators trainable: a DREIDING parameter set can be retargeted to a new chemistry from a modest amount of reference data without giving up the rule-based machinery that makes it applicable to molecules it has never seen.
Three caveats worth carrying forward. The fit improves forces, not
necessarily equilibrium geometries: generators that a training molecule
constrains only weakly (here theta0 of an aromatic carbon) can drift to
unphysical values while the forces improve, so fitting across several
molecules with different local geometries is preferable. Parameters that
the data does not constrain should stay frozen rather than be handed to the
optimizer – the van der Waals well depths above are the concrete case, and
D0 in particular has no lower barrier stopping it from going negative,
which silently removes the interaction rather than weakening it. And the
refitted set is no longer the published DREIDING: it should be saved, named
and cited as its own parameterization.
